Understanding the Stone Jaw Crusher: A Key Tool in the Mining and Construction Industrie

What is a Stone Jaw Crusher?

The stone jaw crusher is fundamental in the mining and construction industries. It is primarily used to crush large stones into smaller, more manageable pieces, making extracting valuable minerals and producing aggregate for construction projects easier. Let's dive deeper into the working principles, applications, and benefits of this powerful machine.

How Does a Stone Jaw Crusher Work?

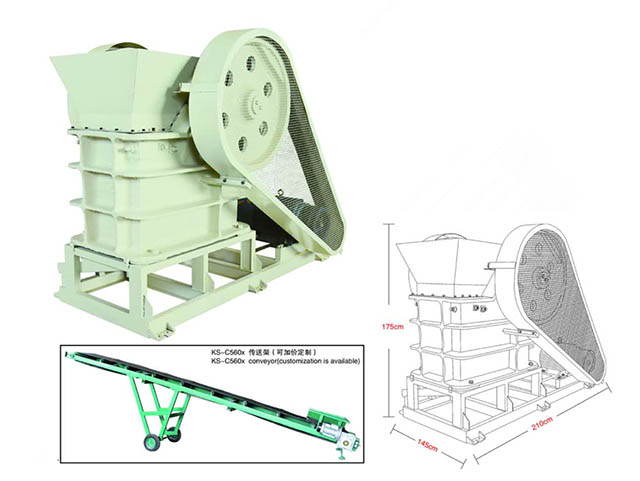

The stone jaw crusher operates on a simple yet effective principle known as "compression crushing." The machine consists of two plates or jaws—one fixed and one moving. When the material (stone, ore, or rock) enters the crushing chamber, the moving jaw compresses it against the fixed jaw. This action causes the stones to break into smaller fragments. As the jaw moves back and forth, the material continues to be crushed until it reaches the desired size and can pass through an opening at the bottom.

To improve stone crushing efficiency, Dafon Machinery has made a fully integrated production line. Using belt conveyors, large rocks are first transferred to a primary crusher, where they undergo initial crushing. The crushed material is then conveyed to a secondary crusher for further processing. After the secondary crushing, the stone materials are classified and sorted by size using a screening system, ensuring an efficient separation of fine and coarse aggregates.

This optimized system enhances production speed and ensures consistent, high-quality output while minimizing manual handling.

Key components of a jaw crusher include:

Fixed Jaw – A stationary plate that holds the material in place.

Moving Jaw – The component that applies force to the material.

Toggle Plate – A part that provides mechanical advantage and transfers movement to the moving jaw.

Flywheel – A large wheel that stores energy and maintains consistent crusher motion.

Advantages of Using a Stone Jaw Crusher

Efficiency and Productivity: Stone jaw crushers are designed to handle a wide range of materials and produce output efficiently. They are known for their high crushing ratios, which means they can reduce large stones into small, uniform sizes in a short amount of time.

Durability: Made with heavy-duty materials, jaw crushers are built to withstand tough operating conditions and handle the most challenging crushing jobs, ensuring a long lifespan and low maintenance costs.

Versatility: A stone jaw crusher can handle a variety of stone types and sizes. From soft limestone to hard granite, this machine can adjust to different types of raw materials, making it suitable for a range of projects.

Cost-Effective: Stone jaw crushers provide a cost-effective solution for material processing. Their simple design and efficient operation make them a preferred choice for small and medium-sized projects that need reliable performance without the hefty price tag.

Applications of the Stone Jaw Crusher

Mining: The jaw crusher is used extensively in mining operations to crush large rocks and ores before they undergo further processing. This machine is particularly suited for hard and abrasive materials such as granite, basalt, and quartz.

Construction: In the construction industry, jaw crushers are crucial for creating aggregate materials like gravel, sand, and crushed stone, which are used in the construction of roads, buildings, and infrastructure projects.

Recycling: Jaw crushers are also used in recycling operations to crush and reduce the size of materials like concrete and asphalt, which can be repurposed for new projects, making them eco-friendly and cost-effective.

Demolition: In demolition activities, stone jaw crushers are used to break down large structures and reduce debris into smaller, manageable pieces for disposal or recycling.

How to Choose the Right Stone Jaw Crusher?

When selecting a stone jaw crusher, consider the following factors:

Material Hardness: Different jaw crushers are optimized for different materials. Make sure the crusher you choose is capable of handling the hardness and abrasiveness of your stone.

Capacity: Depending on your project’s scale, you’ll need to ensure the crusher can handle the required production capacity. Look for crushers with the appropriate throughput and size range for your needs.

Mobility: For on-site applications or projects requiring equipment to be moved frequently, a mobile jaw crusher can be beneficial.

Maintenance Requirements: Consider how easy it is to maintain the crusher. Look for designs with replaceable wear parts and minimal maintenance requirements.

How to improve performance capability？

To improve the performance capability of a stone crushing production line, several key factors must be considered to ensure efficient operation and high-quality output. Here’s a detailed continuation of each point you mentioned:

Proper Jaw Plate Selection

Choosing the correct jaw plate for the crushing machine is critical in optimizing its performance. The material, hardness, and profile of the jaw plate must be selected based on the type of stone being processed. Using a high-quality jaw plate with the right profile ensures that wear and tear are minimized, and crushing efficiency is maximized. For instance, a thicker jaw plate might be more suitable for harder stones like granite, while a thinner one could be ideal for softer stones.

Appropriate Feed Configuration

The way material is fed into the crusher can significantly impact its performance. The feed should be evenly distributed across the width of the crusher to avoid uneven wear on the jaw plates and ensure consistent crushing. Moreover, the size of the feed material should be within the crusher’s capacity, avoiding blockages that can cause downtime. Pre-screening oversized material can improve overall efficiency.

Controllable Feed Quantity

The feed rate should be adjustable to match the capacity of the crusher. Automated systems with sensors can help regulate the feed quantity, ensuring that the crusher operates at its optimal capacity without being overloaded. By maintaining a steady and controlled feed rate, unnecessary stress on the crusher is avoided, leading to a more efficient operation and longer equipment life.

Adequate Feeder Capacity and Width

The feeder that supplies material to the crusher must have the right capacity and width to handle the amount of material being processed. If the feeder is too narrow or lacks the necessary capacity, it can cause bottlenecks in the production process, reducing the crusher's effectiveness. An oversized feeder allows for more efficient material flow and prevents underfeeding.

Sufficient Crusher Discharge Area

After the stone material is crushed, the discharge area must be spacious enough to allow smooth flow of the processed material. If the discharge area is too small, it can cause blockages, leading to production delays and wear on the equipment. Ensuring an unobstructed and adequately sized discharge area helps maintain continuous operations and prevents overloading of the system.

Matching Discharge Conveyor with Maximum Crusher Capacity

The conveyor system responsible for moving the crushed material away from the crusher must be matched to the maximum output capacity of the crusher. If the conveyor is undersized, it will become a bottleneck, limiting the crusher’s efficiency. Therefore, the discharge conveyor should be capable of handling the maximum amount of material the crusher can produce, ensuring smooth and continuous operation without delays.

By focusing on these aspects—jaw plate selection, feed configuration, feed rate control, feeder capacity, discharge area, and matching conveyor capacity—you can significantly improve the performance capability of a stone-crushing production line. These adjustments ensure that the equipment operates at its peak efficiency, with reduced downtime, longer service life, and increased production output.
