Understanding the Diamond Wire Machine

1.What is wire saw cutting?

Wire saw cutting is a precise and efficient method of cutting through hard materials like stone, concrete, or metal using a wire embedded with diamond segments. The wire saw, which consists of a steel cable with diamond beads or segments attached at regular intervals, is looped around the material to be cut. The wire is then driven by a motor, pulling it through the material in a continuous motion.

As the diamond wire moves, it grinds through the material, creating a clean and accurate cut. This method is particularly useful for cutting large or irregularly shaped pieces of stone, such as in quarrying operations, or for precise cuts in construction and demolition projects where traditional saws might struggle. Wire saw cutting is favored for its ability to produce minimal waste and its capability to cut through very hard materials with high precision.

2. What is a diamond wire saw used for?

A diamond wire saw is primarily used to cut through hard materials, such as:

Stone: Granite, marble, limestone, and other natural stones

Concrete: Foundations, walls, and other structures

Metal: In certain industrial applications, though less common than traditional metal-cutting methods

The diamond particles embedded in the wire are extremely hard and can effectively cut through these materials, even when they are very thick or have complex shapes.

A diamond wire saw is used for cutting hard materials such as stone, concrete, and metal with high precision. It is widely employed in various industries, including:

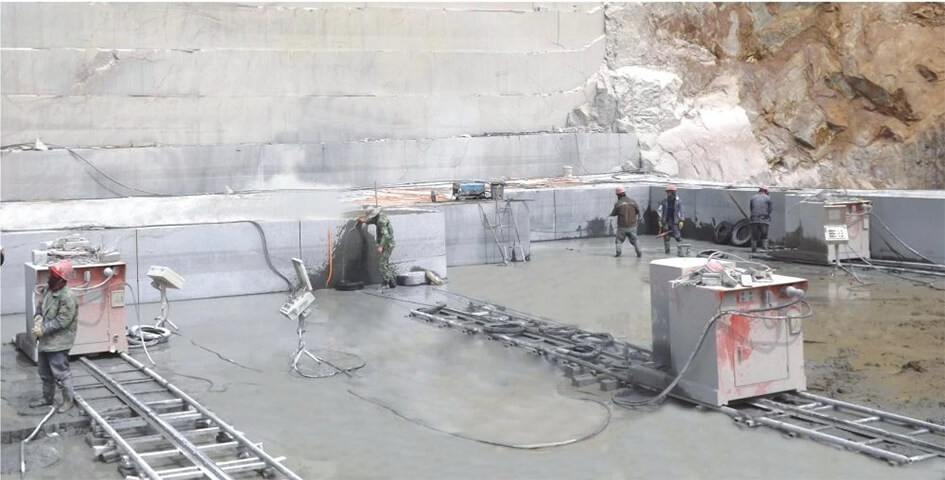

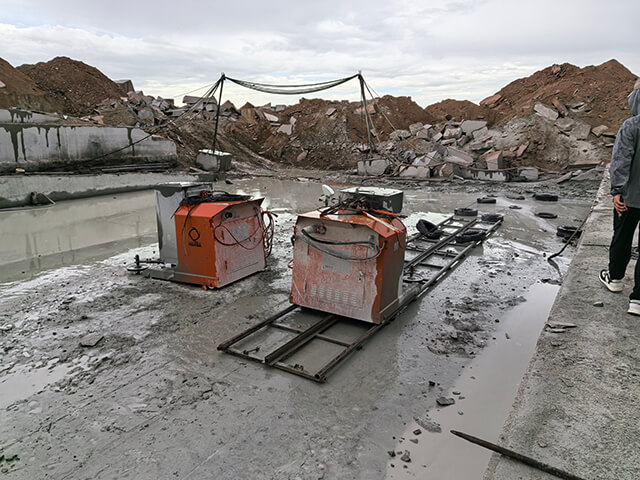

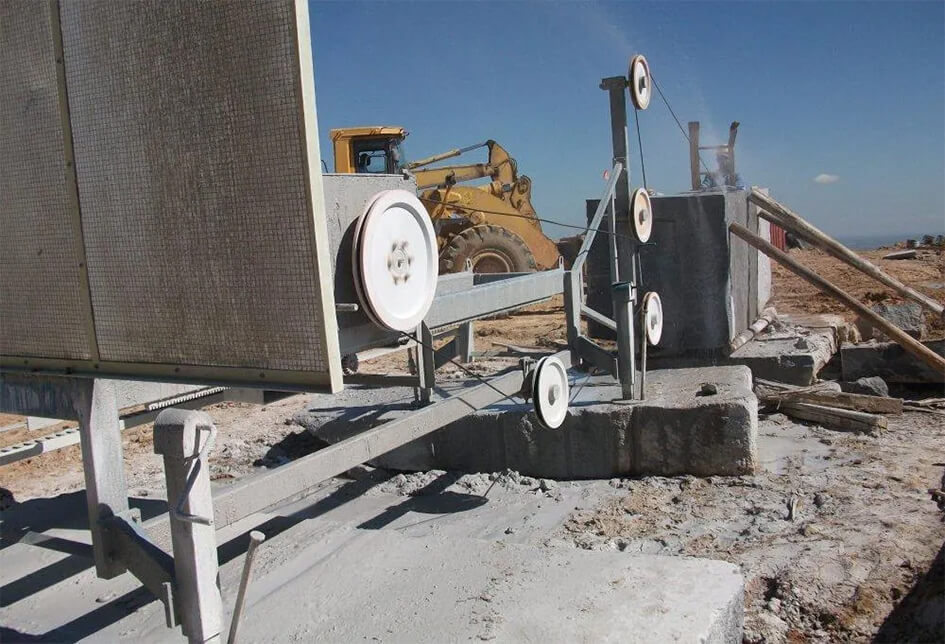

Quarrying: In the stone industry, diamond wire saws are used to extract large blocks of marble, granite, and other natural stones from quarries. The saw allows for precise and efficient cutting, reducing waste and ensuring the quality of the extracted blocks.

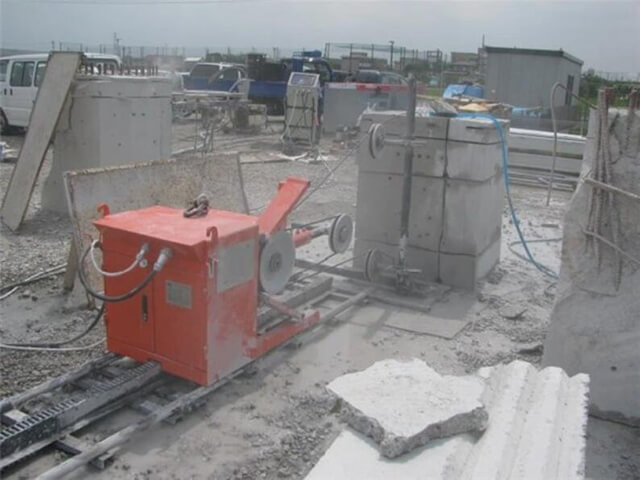

Construction and Demolition: Diamond wire saws are used for cutting through reinforced concrete, steel, and other tough materials in construction and demolition projects. They are particularly useful for making precise cuts in thick walls, bridges, and other structures where conventional cutting tools would be less effective.

Manufacturing: In manufacturing, diamond wire saws are used to slice hard materials such as ceramics, silicon, and other industrial materials. The fine-cutting ability of the wire saw ensures minimal material loss and high accuracy, which is essential in producing high-quality components.

Tombstone and Monument Fabrication: Diamond wire saws are also used in the fabrication of tombstones and monuments, allowing for the detailed cutting and shaping of granite and marble.

3.What is the diamond wire method?

The diamond wire method, also known as diamond wire cutting, is a technique that uses a wire embedded with diamond segments to cut through hard materials. Here’s a brief overview of the process:

Wire Composition: The wire is typically a steel cable or wire with diamond beads or segments attached at regular intervals. The diamonds, being extremely hard, are capable of grinding through tough materials.

Cutting Process: The diamond wire is looped around the material to be cut. As the wire is tensioned and driven by a motor, it moves continuously in a sawing motion. The diamond segments on the wire grind away the material as the wire moves through it.

Applications: The diamond wire method is used for cutting various hard materials like stone, concrete, metal, and ceramics. It is popular in quarrying, construction, demolition, and manufacturing due to its precision, efficiency, and ability to make intricate cuts.

Advantages: The method provides high cutting accuracy, minimal material waste, and the ability to cut large or irregularly shaped pieces with smooth, clean edges. It is also effective for cutting very hard or reinforced materials that might be challenging for other cutting methods.

4.How fast is a diamond wire saw?

The speed of a diamond wire saw can vary depending on several factors, including:

Material being cut: Harder materials will generally require slower cutting speeds.

Wire diameter and tension: Thicker, more tensioned wires can cut faster.

Diamond particle size and density: Larger, denser diamond particles can cut faster.

Cutting depth: Deeper cuts require slower speeds.

Typical cutting speeds for diamond wire saws range from a few inches per minute to several feet per minute. However, it's important to note that these speeds are approximate and can vary significantly depending on the specific conditions.

For example:

When cutting through a thick block of granite, a diamond wire saw might only be able to cut a few inches per minute.

When cutting through a thinner concrete slab, the saw could cut several feet per minute.

5.Can diamond wire cut wood?

Diamond wire saws are generally not used for cutting wood. They are designed for cutting hard materials such as stone, concrete, and metal, where the diamond segments are effective in grinding through these tough substances. Wood is much softer compared to these materials, and using a diamond wire saw on wood would be inefficient and unnecessary.

For cutting wood, traditional saws like circular saws, band saws, or jigsaws are more appropriate and cost-effective. These tools are specifically designed to handle the properties of wood and provide efficient cutting with minimal waste.

6.Can diamond wire cut steel?

Yes, diamond wire saws can cut steel. They are effective at cutting through various types of steel, including reinforced steel and other metals, due to their diamond segments, which are extremely hard and capable of grinding through tough materials.

Diamond wire saws are often used in construction and demolition projects where precise cuts are needed in steel structures or components. The cutting speed for steel might be slower compared to softer materials, but the diamond wire's ability to handle hard and reinforced materials makes it a suitable choice for such tasks.
