How Are Stones Cut in a Quarry?

Cutting stones in a quarry is an intricate process that requires a blend of advanced machinery, skilled labor, and precise techniques to ensure that the stones are extracted and shaped efficiently and safely. Here’s a detailed look into the process:

1. Surveying and Planning

Before any cutting begins, extensive surveying and planning are essential. Geologists and engineers assess the quarry site to determine the types and qualities of stone available. They analyze the stone’s composition, the presence of any fissures, and the overall structure to plan the best extraction methods.

2. Clearing and Preparing the Site

Once the planning is complete, the quarry site is cleared of any overburden, which includes soil, vegetation, and other materials covering the stone deposits. Heavy machinery, such as bulldozers and excavators, is used to remove this overburden and expose the stone.

3. Marking and Drilling

The next step involves marking the stone blocks to be cut. This is done based on the survey data and the desired dimensions of the blocks. Precision is crucial to minimize waste and ensure uniformity.
After marking, drilling rigs are brought in to create holes along the marked lines. These holes are typically spaced evenly and are used for inserting explosives or wedges. The drilling can be done using various methods:
Percussion Drilling: A hammering action breaks the stone.
Rotary Drilling: A rotating action grinds the stone away.
Diamond-tipped Drilling: Highly effective for hard stones.

4. Splitting the Stone

Once the holes are drilled, the stone blocks are split using one of the following methods:
Explosives: Controlled blasting involves placing small amounts of explosives in the drilled holes. The explosion causes the stone to crack along the desired lines. This method requires extreme precision and safety measures to avoid unwanted fragmentation.

Wedge and shims: This traditional method uses metal wedges and shims. The wedges are inserted into the drilled holes and then struck with a hammer. The pressure created by the wedges splits the stone along the marked lines.
Hydraulic Splitters: These machines apply hydraulic pressure to split the stone. They are inserted into the drilled holes and expanded, causing the stone to crack.

5. Cutting and Shaping

After splitting, the rough blocks are further cut and shaped. This can be done using several advanced methods:

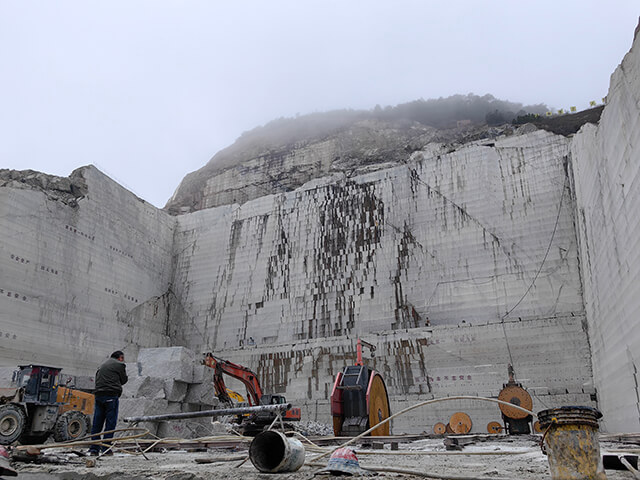

Diamond Wire Sawing: A diamond-coated wire is threaded through holes drilled in the stone. The wire is then pulled back and forth, cutting through the stone with precision. This method is highly efficient and produces smooth cuts.

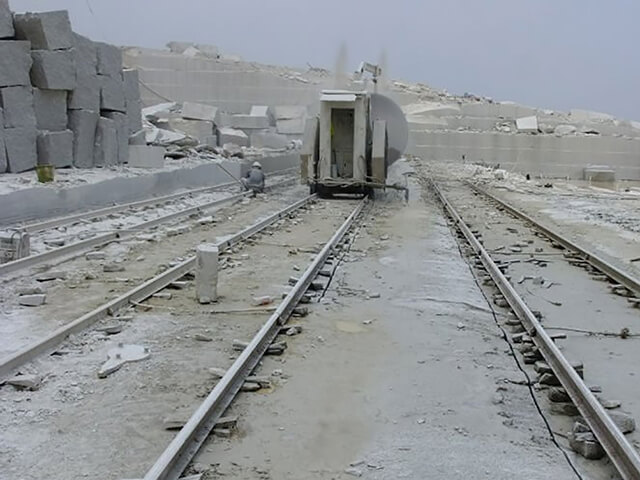

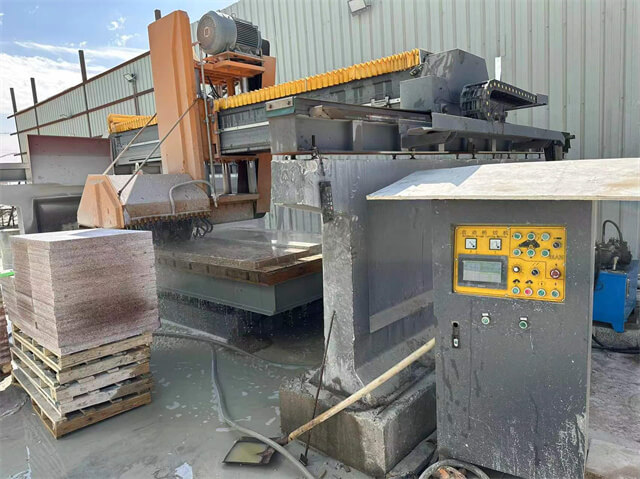

CNC Bridge Saws: These machines use a diamond blade mounted on a movable bridge. Controlled by computer numerical control (CNC), they can cut stone blocks into precise shapes and sizes.

Water Jet Cutting: High-pressure water jets mixed with abrasive materials can cut through stone with minimal waste and dust. This method is precise and environmentally friendly.

6. Transporting and Finishing

Once the stone blocks are cut, they are transported from the quarry to processing plants. Here, the stones undergo further cutting, polishing, and finishing to meet specific industry standards and customer requirements.
Polishing Machines: Automatic polishing machines enhance the stone's surface, providing a smooth, glossy finish. These machines use rotating pads or abrasive belts to polish the stone.
Edge Profilers: These machines shape the edges of stone slabs into various profiles, such as bullnose, bevel, or ogee, to meet design specifications.

7. Quality Control

Throughout the entire process, quality control is critical. Each stage of cutting and processing is monitored to ensure that the final product meets the desired standards of size, shape, and finish. Any defects or irregularities are addressed promptly to maintain the highest quality.

Conclusion

Cutting stones in a quarry is a complex, multi-stage process that combines traditional methods with advanced technology. From initial surveying and planning to the final finishing touches, each step requires precision and expertise. The result is high-quality stone blocks that are used in construction, decoration, and various other applications, showcasing the natural beauty and durability of the material.
