Price:
Brand Name: DAFON
Certification: CE, ISO
Model Number: 1500/1800/2500
Power: 11KW
Weight: 2300-3300
Application: Balustrade, columns, balls
Place of Origin: CHINA.
Trading Method: FOB/CIF/EXW Xiamen Port
Minimum Order Quantity: 1 SET
Delivery Time:90 Days
Packaging logistics: In wooded cases with fumigation finish or wrapped with plastic film.
Introduction:

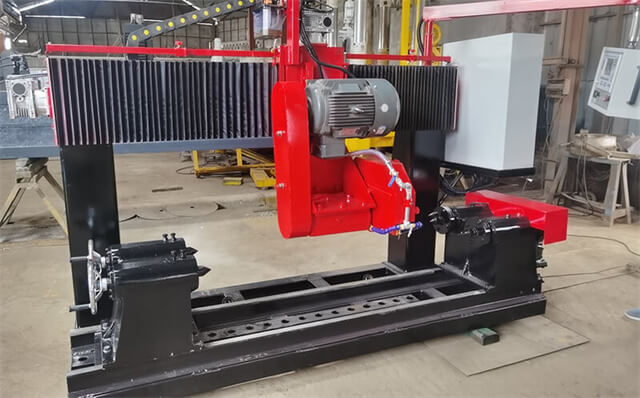

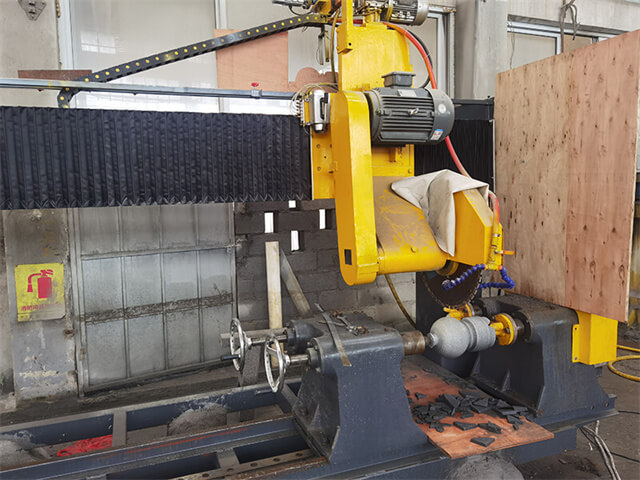

The Balustrade Profiling Machine, also known as the Stone Baluster Profiling Machine, adopts a gantry structure: it is convenient for loading and unloading of stone materials. PLC and CNC systems are optional. The operation is simple and easy to learn, and there is no need to spend practice and energy on machine operation training. The stable body structure and wide workpiece clamping distance meet various processing needs from Balustrade to large column.
Advantage:
High efficiency: Profile cutting, dual-axis linkage, collaborative work, improved processing efficiency, and quickly completing complex processing tasks.
High precision: CNC/PLC control system, precise control, ensuring accurate cutting size and shape.
High Stability: Sturdy and durable, long-lasting use.
Widely applicable:

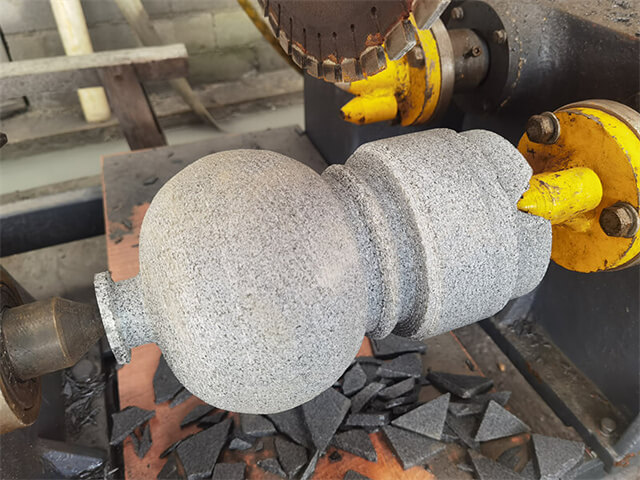

can process special-shaped stone products such as columns, balustrade, flower pots, etc. of different specifications.
Application scenarios:
The Balustrade Profiling Machine has a wide range of applications. Special-shaped stone products such as columns, balustrade, flower pots, etc. can be easily carved by it. Whether it is stairs, architectural decoration, or garden landscapes, you can see it, adding artistic flavor to people's lives.
Specification
| Name | Unit | 1500 | 1800 | 2500 |
|
Processing specifications |
mm | 400/1pcs,200/2pcs | 600/1pcs,200/2pcs | 600/1pcs 250/2pcs |
|
Rotation center distance |
mm |
300 | 300 | 380 |
|
Processing length |
mm |
1500 | 1800 | 2500 |
|
Lifting stroke |
mm |
400 | 600 | 600 |
|
main motor power |
kw | 11 | 11 | 11 |
|
Saw blade diameter |
mm |
400-500 | 400-600 | 400-600 |
|
weight |
kg | 2300 | 2800 | 3300 |
|
Standard sizes |
mm |
3000*1300*2100 | 3400*1500*2500 | 4100*1500*2500 |
