Price:
Brand Name: DAFON
Certification: CE, ISO
Model Number: 1500/4000/6000
Power: 11/15kw
Weight: 3000/5500/8000kg
Application: cloumn cap and base
Place of Origin: CHINA.
Trading Method: FOB/CIF/EXW Xiamen Port
Minimum Order Quantity: 1 SET
Delivery Time:90 Days
Packaging logistics: In wooded cases with fumigation finish or wrapped with plastic film.
Introduction：

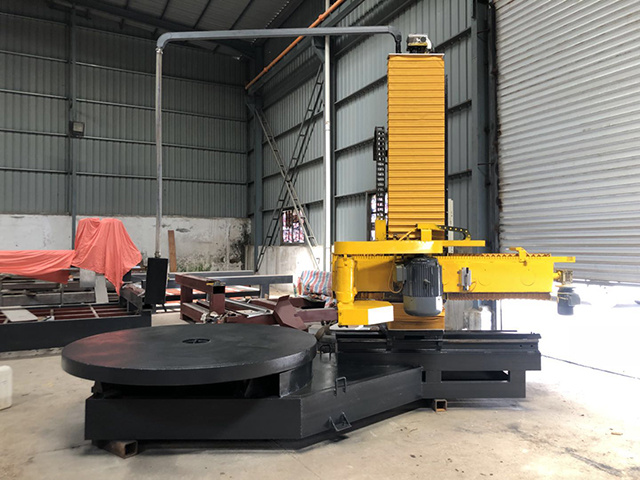

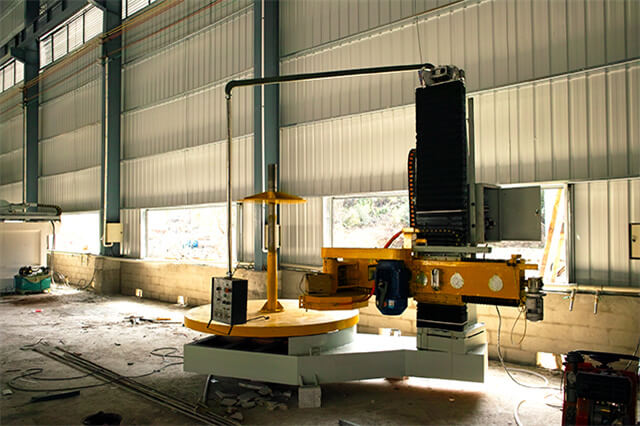

The design and development of the Column Cap Base Profile Machine has brought many benefits and convenience to the stone processing industry. This equipment adopts the advanced lathe structure principle, with computerized automatic profiling, elevation adjustment cutting, and other characteristics, effectively solving the traditional manual processing of inefficiency and inaccuracy. With advanced technology and stable performance, this equipment has high reliability and safety, which reduces cost and improves the production efficiency for enterprises.
The appearance of the Column Cap Stone Profiling Machine not only represents the development direction of scientific and technological progress but also reflects the pursuit of human beings in the industrial field of production efficiency and quality. I believe that this equipment will continue to upgrade and improve in the future, bringing more development opportunities for the stone processing industry.
specification:
| Name |
Unit |
1500 model |
4000 model |
6000 model |
|
Max. diameter |
mm |
1500 | 4000 | 6000 |
|
Max. height |
mm |
1500 | 1700 | 2800 |
|
Max. load |
kg | 3000 | 40000 | 80000 |
|
Worktable diameter |
mm | 1000 | 2000 | 2000-2500 |
|
Blade saw diameter |
mm | 500-700 | 500-800 | 500-800 |
|
Main motor power |
kw | 11 | 11 | 15 |
|
weight of the main motor |
kg | 3000 | 5500 | 8000 |
|
overall dimension |
nn | 3000*1100*2900 | 5200*2000*3200 | 6200*2500*4500 |
