Price:
Model Number: DF-450/600/800
Power: 15/18.5/22KW
Application: Machinery & Hardware, Construction, Stone Industry
Weight: 4500/5600/5600 KG
Brand Name: DAFON
Certification: CE, ISO
Packaging logistics: In wooded cases with fumigation finish or wrapped with plastic film.

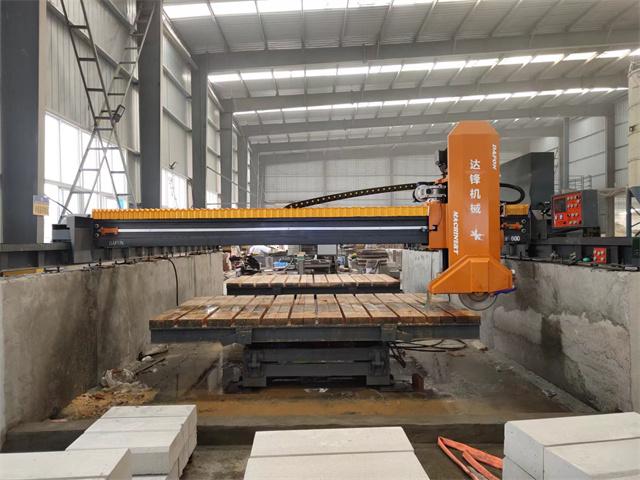

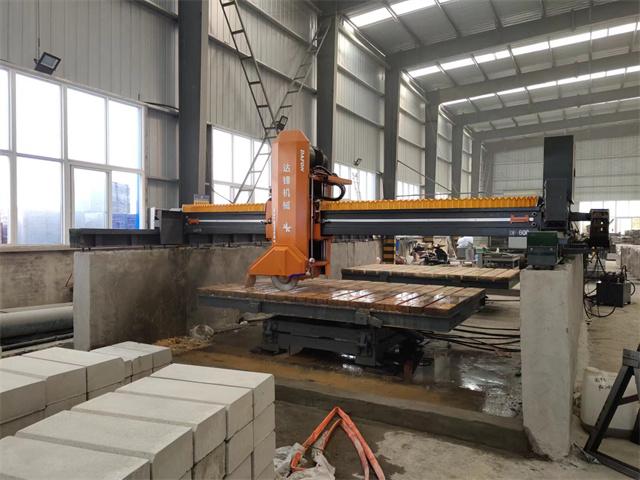

Stone cutting bridge saws can typically handle a range of sizes when it comes to cutting stone materials. The specific size capacity of a bridge saw will depend on the model and specifications of the machine. Some stone bridge saws can accommodate smaller stones, while others are designed for larger and heavier stones.
To achieve different size capabilities, stone bridge saws are equipped with adjustable features. These features may include:
Bridge length: The bridge of a bridge saw can be extended or retracted to accommodate different sizes of stones.
Blade diameter: Bridge saws use diamond blades to cut through stone materials. Different blades with varying diameters can be installed on the saw, allowing for cutting stones of different thicknesses. Conventional sizes are: 350-450mm、350-600mm 、400-800mm
Cutting table dimensions: The cutting table of a bridge saw provides the platform for placing and cutting the stones. It can be adjustable or modular to accommodate different sizes of stones. worktable dimension: 3200*2000mm
Cutting depth: Bridge saws can be adjusted to control the depth of the cut, allowing for precise cuts on various stone thicknesses.
It is necessary to achieve a specific cutting size, By utilizing these adjustable features, and the size of the saw blade and the rotation and reversion angle of the worktable need to be adjusted according to the size,stone cutting bridge saws can be customized to meet the specific size requirements of different stones in the construction industry.
Appellation |
DF-450 |
DF-600 |
DF-800 |
Unit |
Blade diameter |
Ø300~450 |
Ø350~600 |
Ø400~800 |
mm |
Max.vertical stroke |
230 |
350 |
350 |
mm |
Worktable tiling degree |
0~85 |
0~85 |
0~85 |
N° |
Worktable rotating degrees |
0~90/0~360 |
0~90/0~360 |
0~90/0~360 |
N° |
Max.cutting depth |
110 |
180 |
280 |
mm |
Water consumption |
1.8 |
1.8 |
1.8 |
m³/h |
Main motor |
15 |
18.5 |
22 |
kw |
Total motor |
24.5 |
26 |
26 |
kw |
Overall dimension (L*W*H) |
6000*4800*2900 |
6000*4800*3000 |
6000*4800*3000 |
mm |
Gross weight |
6560 |
7580 |
8250 |
kg |
Worktable dimension |
3200*2000 |
3200*2000 |
3200*2000 |
mm |
