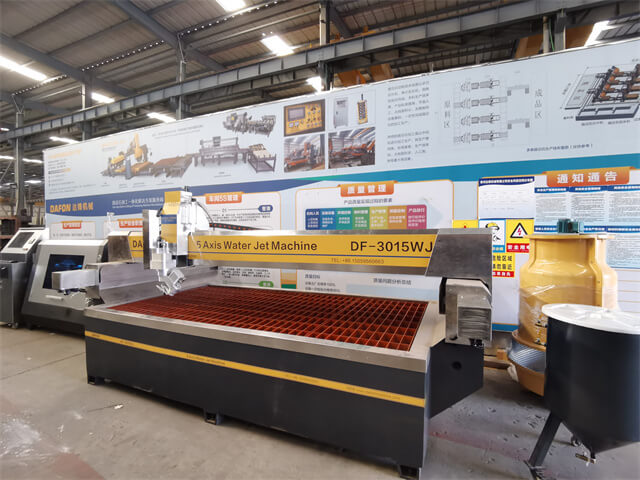

5 axis Water Jet Cutting Machine


Price: $33000-$36900

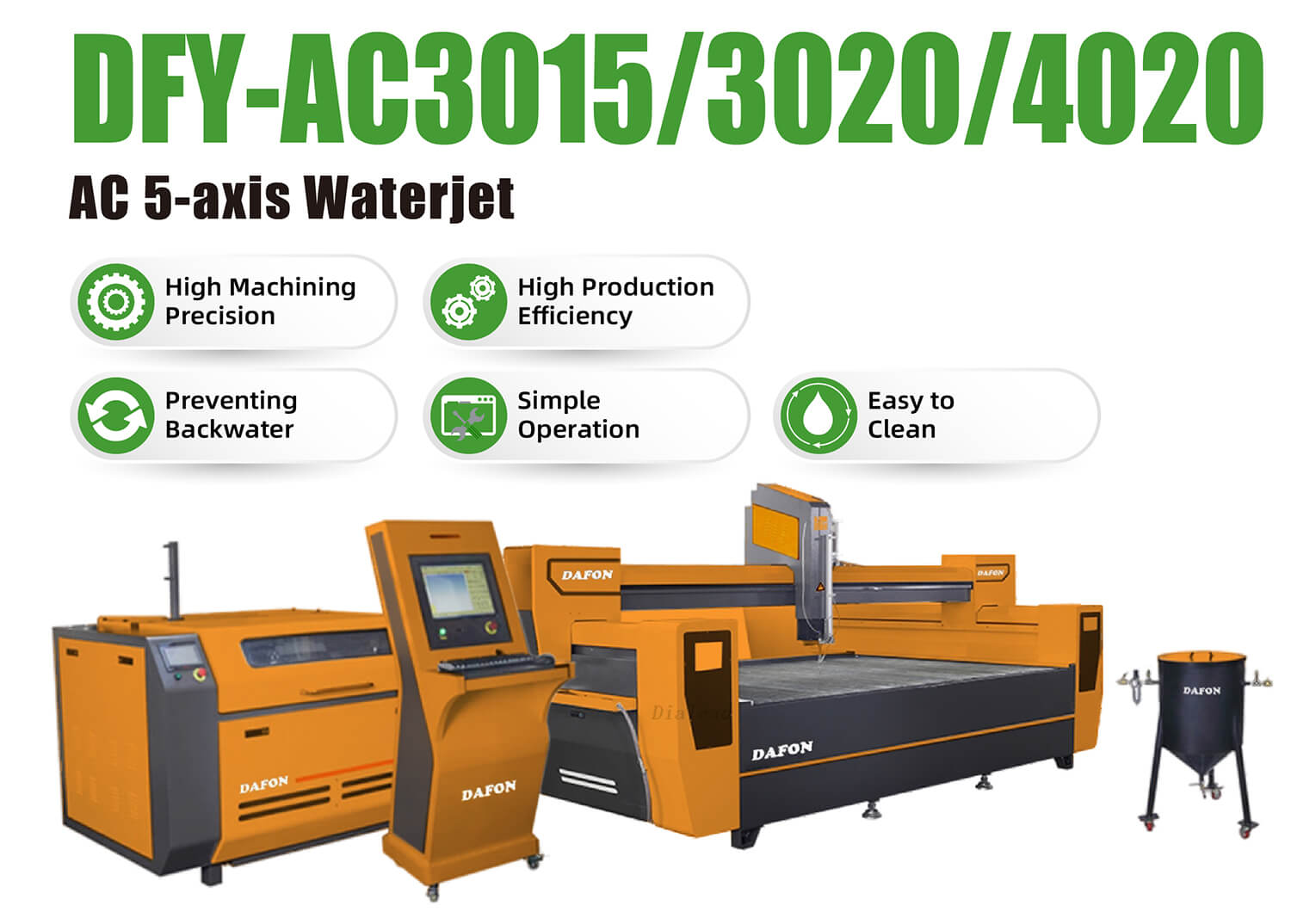

Model Number: DFY-AC3015/3020/4020
Power: 380V
Application: stone processing ,stone parquet, tile parquet and other industries
Weight: 6000kg
Place of Origin: CHINA.
Brand Name: DAFON
Certification: CE, ISO
Minimum Order Quantity: 1 SET
Trading Method: FOB/CIF/EXW Xiamen Port
Delivery Time:90 Days
Packaging logistics: In wooded cases with fumigation finish or wrapped with plastic film.

Get Quote

Introduction

5 Axis water Jet cutting machine consists of four parts: a cutting platform, a CNC operating system, a high-pressure system, and an automatic water jet sand feeding system. it is widely used in special-shaped cutting in stone processing, stone parquet tile parquet, glass, metal, and other industries. You can use software drawing to realize any graphics. of cutting.

waterjet machine


Performance Features

Easy to operate: Using a CNC data control system, it has a full range of cutting capabilities and can cut any plane curve.

High processing accuracy: The specially reinforced bed structure prevents the cutting head from vibrating when running at high speed. The whole machine runs smoothly, has fast cutting speed, and high processing accuracy

High production efficiency: The cutting head is equipped with a reliable pneumatic high-pressure water switch control device to improve production efficiency.

Long service life: The XY axis adopts a unique bubble screw guide lubrication method, coupled with an effective: waterproof and dustproof structure, to ensure the processing accuracy of the CNC cutting platform and maximize the service life of the screw guide.

Prevent water backflow: The unique sand valve design makes sand flow smoother, makes repair more convenient, and prevents water flooding from occurring.

Easy to clean: Stainless steel protective cover, dust-proof, rust-proof, anti-corrosion, easy to clean

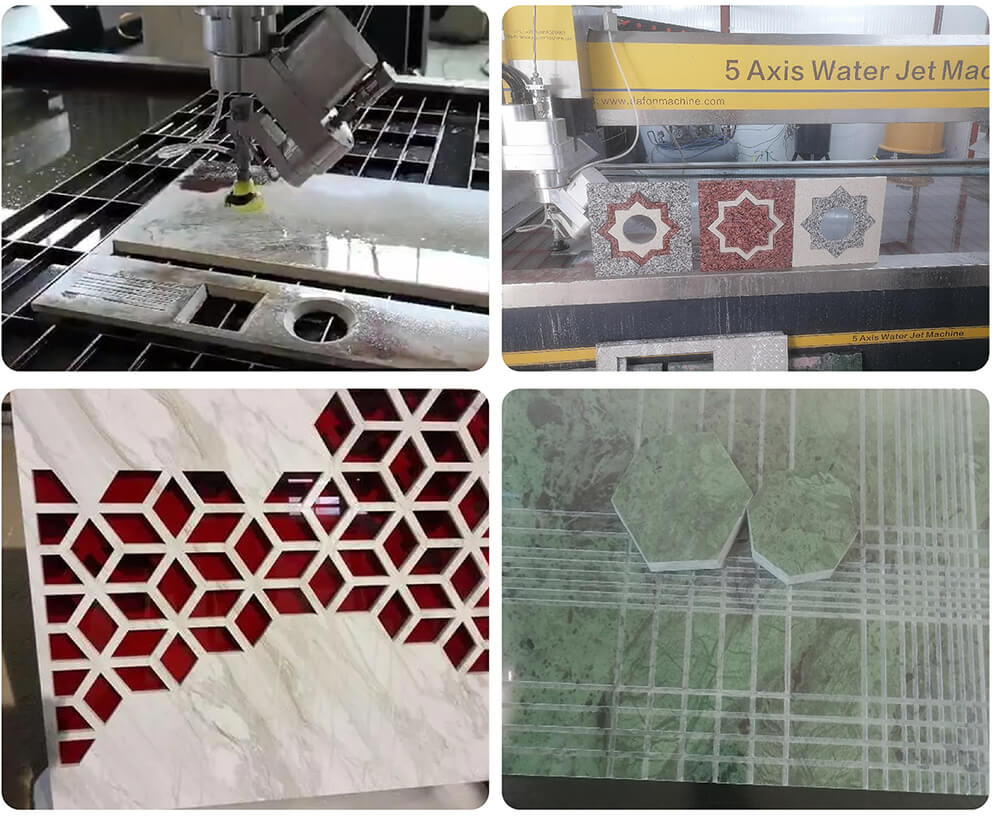

Application

waterjet machine

Technical Data

Name

unit

DFY-AC3015

working size

mm

3000*1500

Cutting accuracy

mm

0.01

repeat accuracy

mm

0.02

drive part

SM

servo motor

X axis speed

mm/min

0-6000

Y axis speed

mm/min

0-6000

Z axis speed

mm/min

0-200

A axis degress

N°

0-10°

B axis degress

0-10°

Z axis stroke

mm

150

Opeoperation language

OS

as per request

Power Supply

V

380

Related Resource


Start Customizing Your
5 axis Water Jet Cutting Machine!
Get Price
5 axis Water Jet Cutting MachineMain Parts
Worktable

1. Worktable

Size: 3000*2000*700mm
Rotation: 0-90°and 0-360° two options & 0-85°tilt
Material: adopt #14 Universal Beam instead of #12 box iron, stronger frame to carry stone
Inside details: 8 rotation wheels inside the worktable not 6 Wood fumigation for export

2. Hydraulic station

seven ocean hydraulic system from Taiwan
Hydraulic station
