5+1 Axis Stone CNC Machine


Price: $37299-$43900
Model Number: DFQ-W(5+1)450/600
Power: 23.9-27.4KW
Application: Stone/marble/granite
Weight: 5000kg
Place of Origin: CHINA.
Brand Name: DAFON
Certification: CE, ISO
Minimum Order Quantity: 1 SET
Trading Method: FOB/CIF/EXW Xiamen Port
Delivery Time:90 Days
Packaging logistics: In wooded cases with fumigation finish or wrapped with plastic film.

Get Quote

Inducation:

This 5+1 CNC stone machine is an enhanced five-axis bridge cutter, equipped with an additional milling cutter for processing milling holes. It is capable of handling complex shapes such as curved lines, fan-shaped panels, custom-designed countertops, and intricate edge profiling. The machine incorporates high-precision linear guides, ball screw drive systems, and an oil-immersed rail mechanism, ensuring superior accuracy and stability. Additionally, it features a memory function that safeguards operations in the event of a power failure, allowing for seamless continuity and efficient production

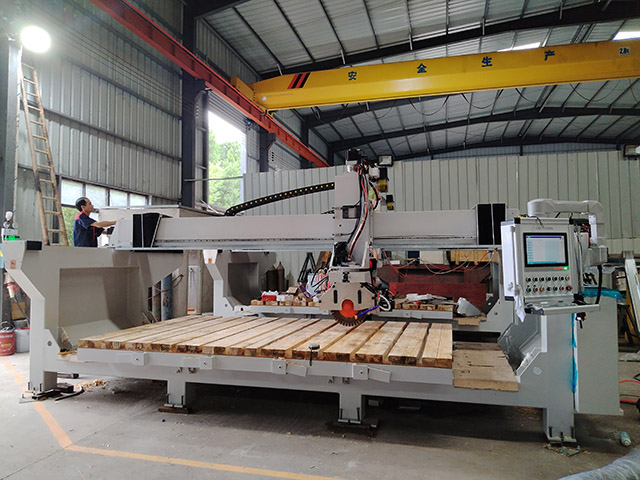

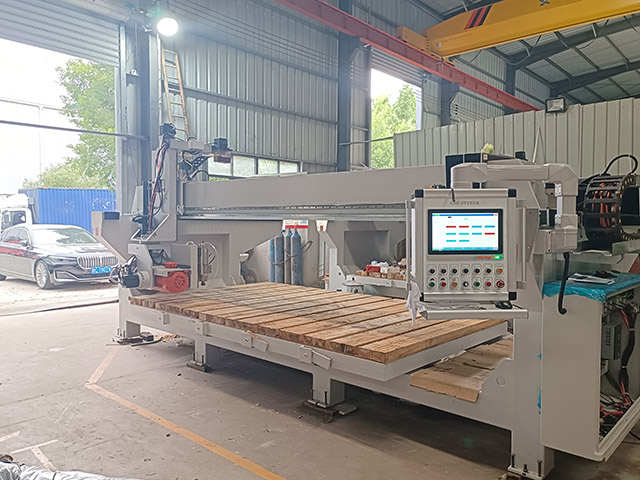

CNC bridge saw

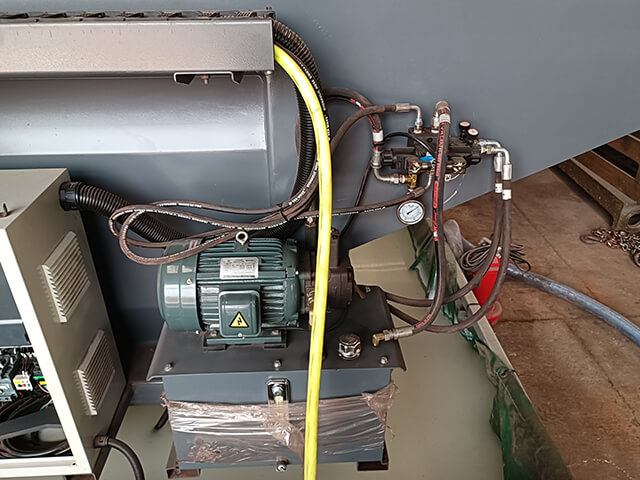

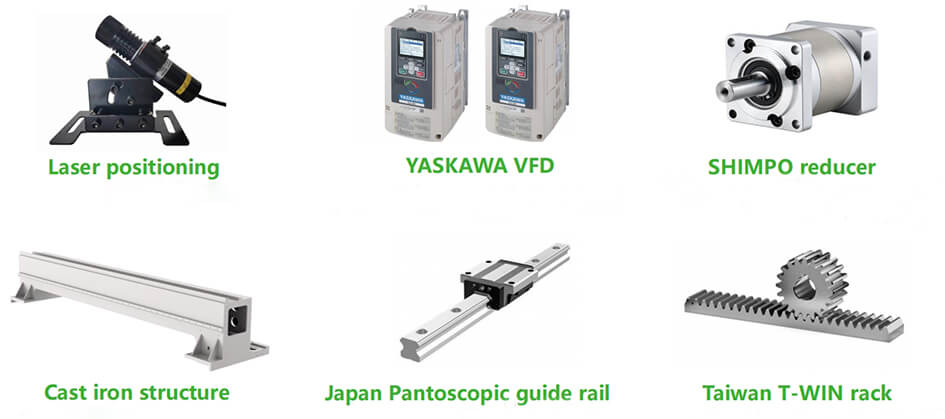

Machine Parts:

cnc granite bridge saw



Laser positioning

Laser positioning function, more accurate standard, improve the accuracy



YASKAWA VFD

High control accuracy, fast response speed, low energy consumption, stable and reliable



SHIMPO reducer

Easy installation, low noise, strong bearing capacity, stable structure, smooth operation.



Cast iron structure

Heavy-duty cast iron parts, durable, safe and reliable



Japan Pantoscopic guide rail

Stable operation, high efficiency, high precision



Taiwan T-WIN rack

High precision, with gear drive,high precision tooth surface, smooth sliding

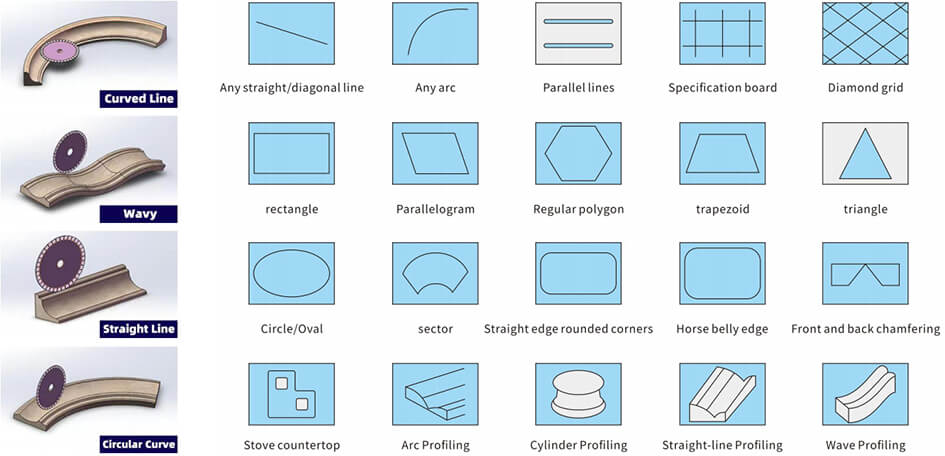

Shape Cutting:

5 axis bridge saw

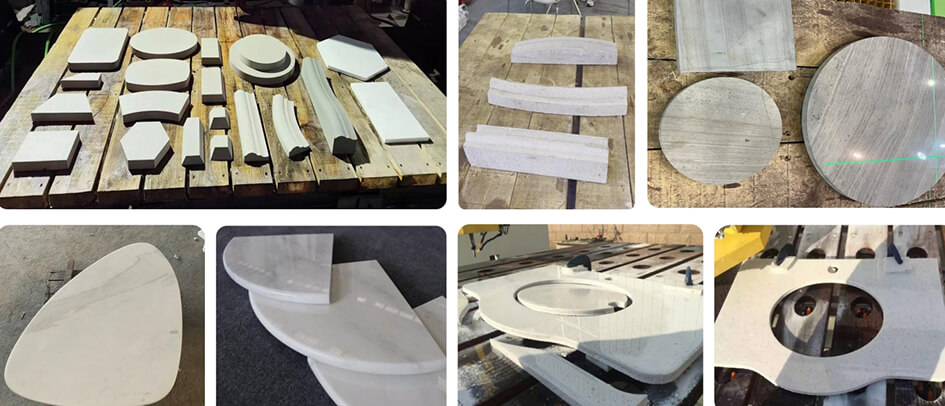

Finished Products:

5 axis bridge saw


Specification:

Name

Unit

DFQ-W(5+1)450

DFQ-W(5+1)600

Blade diameter

mm

Φ350~450

Φ450~600

Maximum processing size(L*W*H)

mm

3500*2100*80

3500*2100*180

Worktable dimension(L*W)

mm

3500*2100

3500*2100

Worktable tilting degree

0~85

 0~85

Water consumption

m³/h

3.5

 3.5

Main motor power

kw

15

18.5

Total power

kw

23.9

27.4

Weight

kg

5000

 5000

Overall dimensions (L*W*H)

mm

5800*3200*2800

 5800*3200*3000


Optional feature

5 axis bridge saw

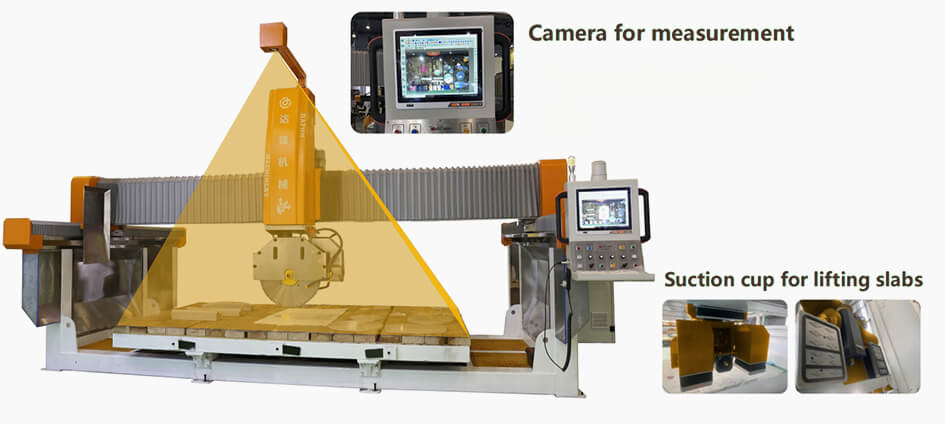

Camera for Measurement System

It has an advanced touch-screen CNC system and an integrated laser marking device.

Automatically measures dimensions by capturing photos, ensuring precision and efficiency.

Photo-based positioning optimizes layout and enhances workflow efficiency.

Defective areas are automatically marked on the photos, and the layout intelligently adjusts to avoid these regions during processing

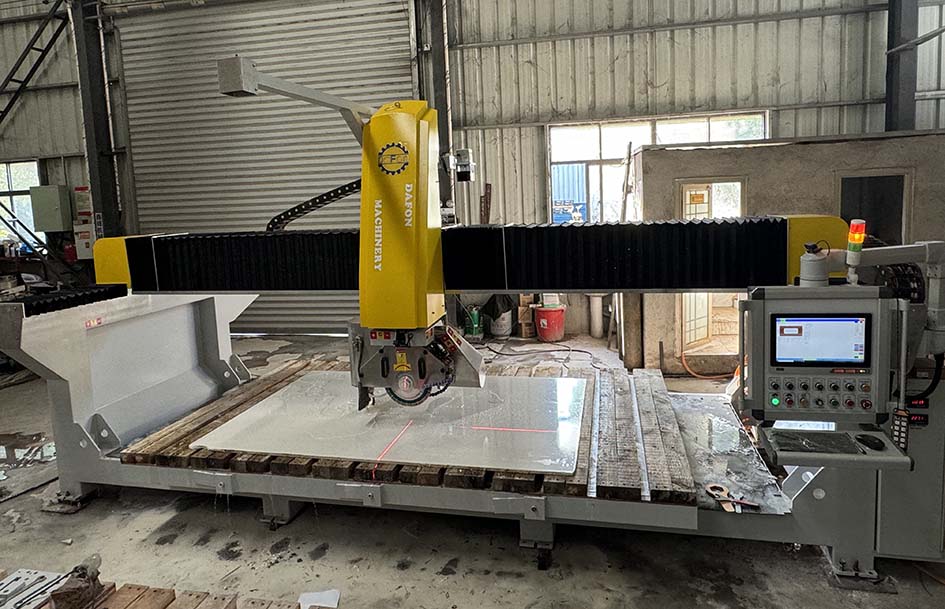

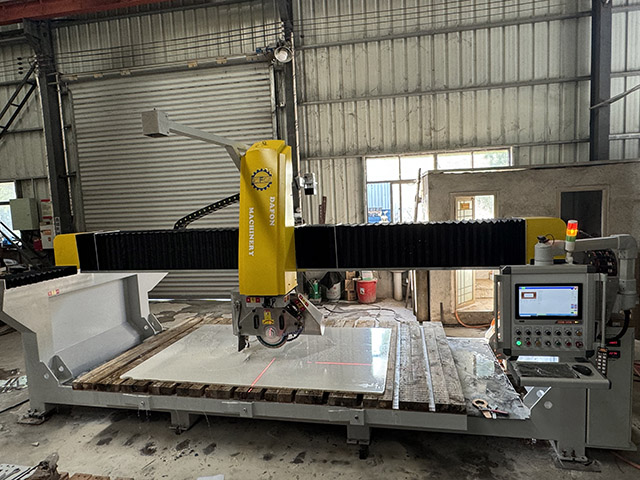

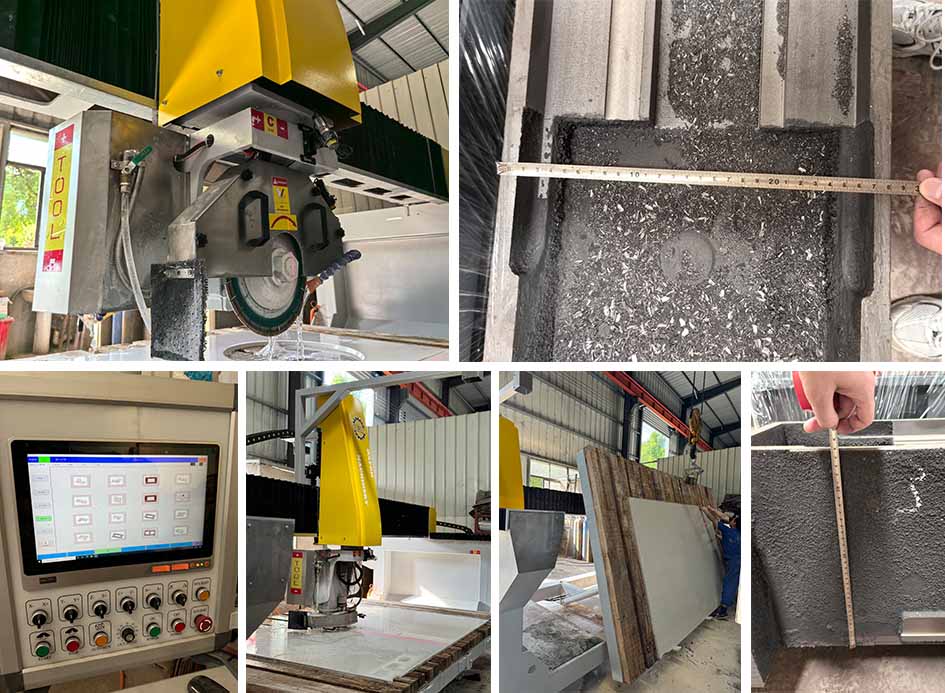

Machine Show

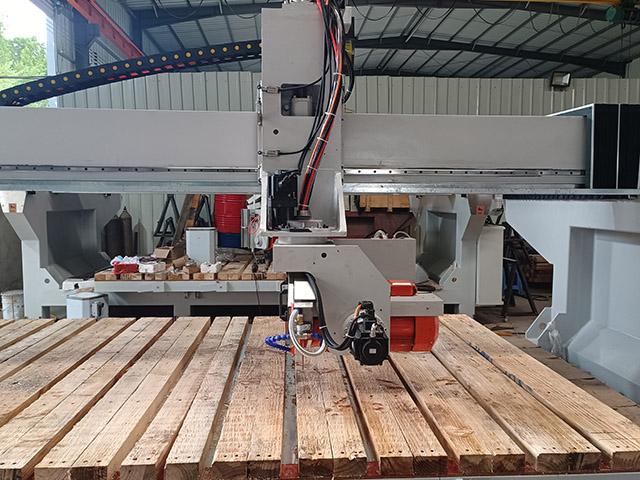

5 axis bridge saw

Multi-axis control system: The bridge saw is equipped with 5 automatic control axes and 1 manual control axis, enabling it to perform complex cutting operations such as straight cutting, curve cutting, angle cutting, etc. The milling cutters are used for more flexible tasks.

High-precision cutting: The equipment is capable of high-precision cutting of materials such as marble, granite, quartz, etc., with high cutting accuracy and neat cutting edges, meeting high-standard processing requirements.

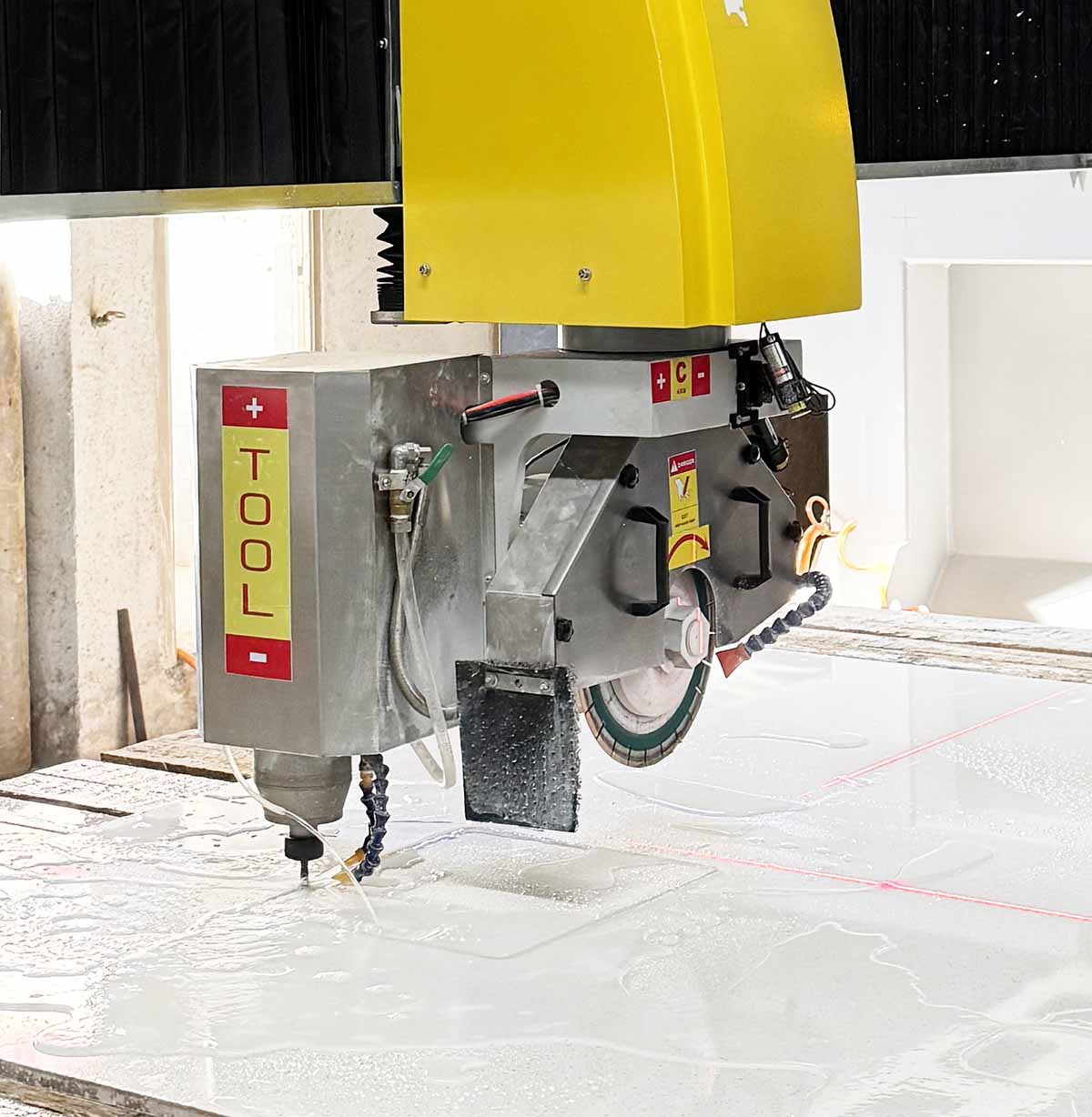

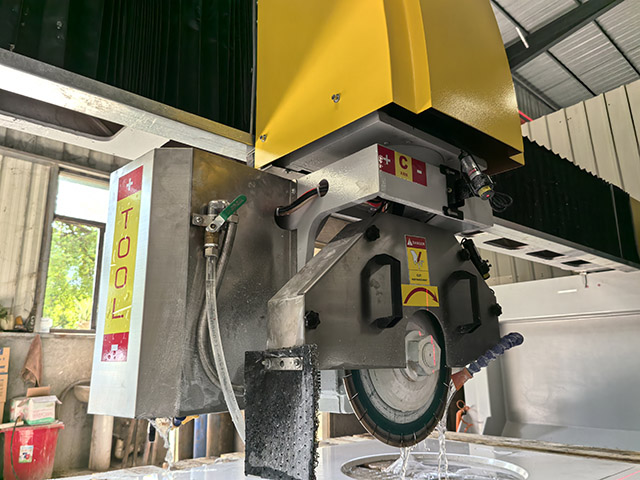

Drilling function: Additional milling cutters allow users to perform flexible drilling operations, which is convenient for installing stone or meeting special design requirements.

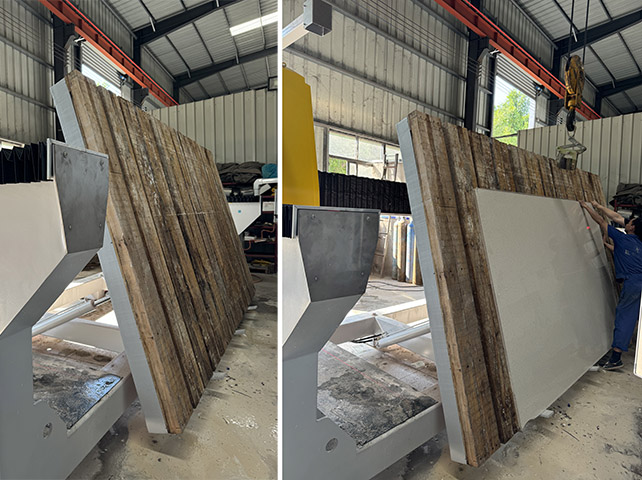

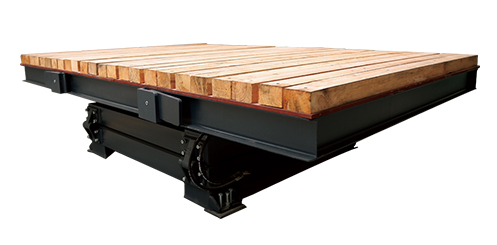

Flexible workbench: The workbench is tilted 85 degrees for large plate loading

Intelligent control interface: The machine is usually equipped with a touch-screen control interface, which is easy to operate and allows users to set various processing parameters for precise control.


5 axis bridge saw

5 axis bridge saw

5 axis bridge saw

5 axis bridge saw

Related Resource


Start Customizing Your
5+1 Axis Stone CNC Machine!
Get Price
5+1 Axis Stone CNC MachineMain Parts
Blade

1. Blade

fast and shape saw blade for any material such as granite marble sandstone limestone cutting etc.

2. Infrared(laser) line

to show the cutting path which ensure precise cutting and high cutting quality
Infrared(laser) line
