Granite Cutting Bridge Saw Machine

• Introduction of Granite Cutting Bridge Saw Machine

A granite cutting bridge saw machine is a kind of high-efficiency, high-precision, easy-to-operate, safe and reliable stone cutting equipment. It adopts infrared technology, which can quickly and accurately cut various stone materials, such as granite, marble, slate, ceramic tile, etc. The infrared bridge stone cutter has a high-precision cutting effect, can achieve fine cutting, and ensures the quality and aesthetics of the product. At the same time, the infrared bridge stone cutter adopts an intelligent PLC control system, which is simple and convenient to operate, and can easily complete stone cutting work without professional skills.

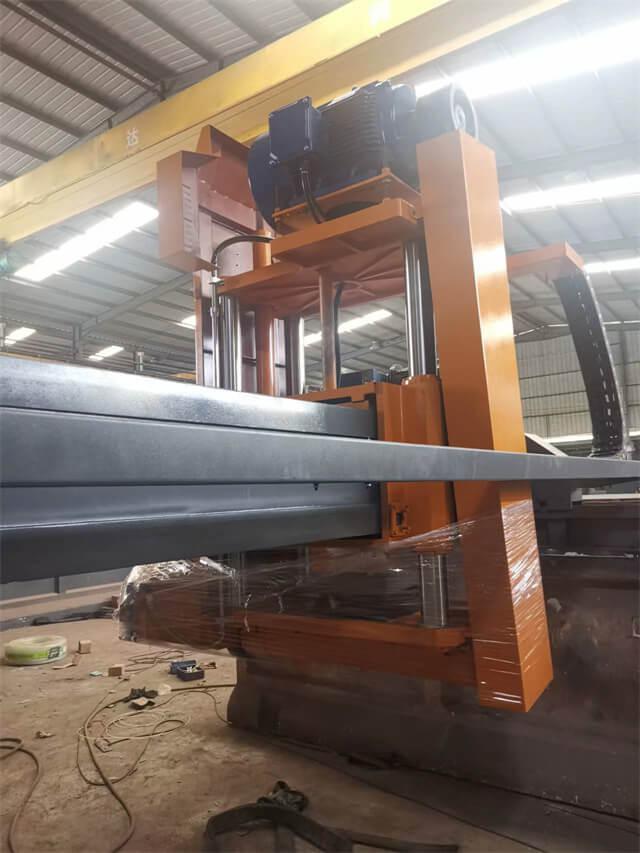

• Bridge saw machine details

Motor: Eagle brand or Mindong brand

·Hydraulic station: seven ocean hydraulic system from Taiwan

·Cement foudation or metalic foundation

·Worktable:

Size: 3000*2000*700mm

Rotation: 0-90°and 0-360°(every 45°one rotation) two options & 0-85°tilt

Material: adopt #14 Universal Beam instead of #12 box iron, stronger frame to carry stone

Inside details: 8 rotation wheels inside the worktable not 6

·Infrared line to show the cutting path which ensure precise cutting and high cutting quality

• Technical Parameters

Appellation	DF-450	DF-600	DF-800	Unit
Blade diameter	Ø300~450	Ø350~600	Ø400~800	mm
Max.vertical stroke	230	350	350	mm
Worktable tiling degree	0~85	0~85	0~85	N°
Worktable rotating degrees	0~90/0~360	0~90/0~360	0~90/0~360	N°
Max.cutting depth	110	180	280	mm
Water consumption	1.8	1.8	1.8	m³/h
Main motor	15	18.5	22	kw
Total motor	24.5	26	26	kw
Overall dimension (L*W*H)	6000*4800*2900	6000*4800*3000	6000*4800*3000	mm
Gross weight	6560	7580	8250	kg
Worktable dimension	3200*2000	3200*2000	3200*2000	mm

• Choose the correct stone cutter according to the processing type

Granite cutting bridge saw machines can perform straight cuts and inclined cuts. These machines are usually equipped with adjustable cutting heads and tables that allow the cutting blades to tilt cut at different angles. The most common cutting methods include straight line cutting and 45-degree angle tilt cutting, if you need to cut complex shapes, 4 Axis bridge saw cutter can do it. Before purchasing a stone cutting machine, please confirm the type of stone you are working on, this is an important consideration when purchasing a machine, simple and common straight line cutting, or tilt cutting Please choose: a stone cutting machine, with complex shapes: such as round, oval, rectangle, and other shapes, choose 4 axis or 5 axis bridge saw cutter if it is a three-dimensional line such as patterns and textures please choose stone engraving machine or stone profiling machine

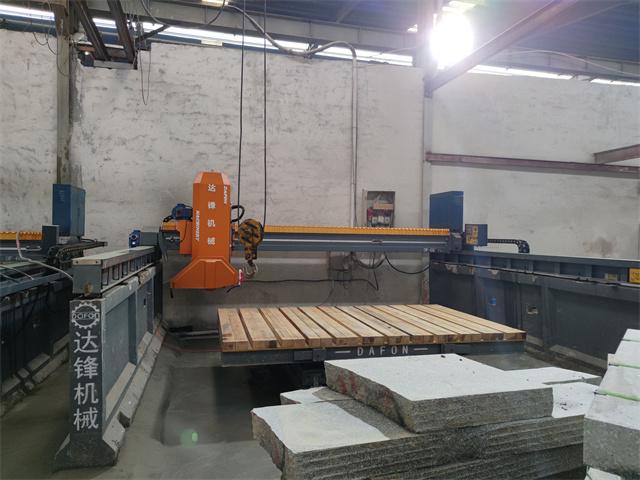

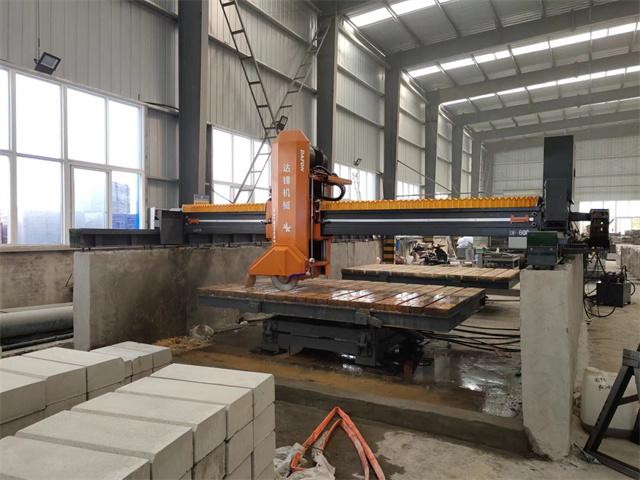

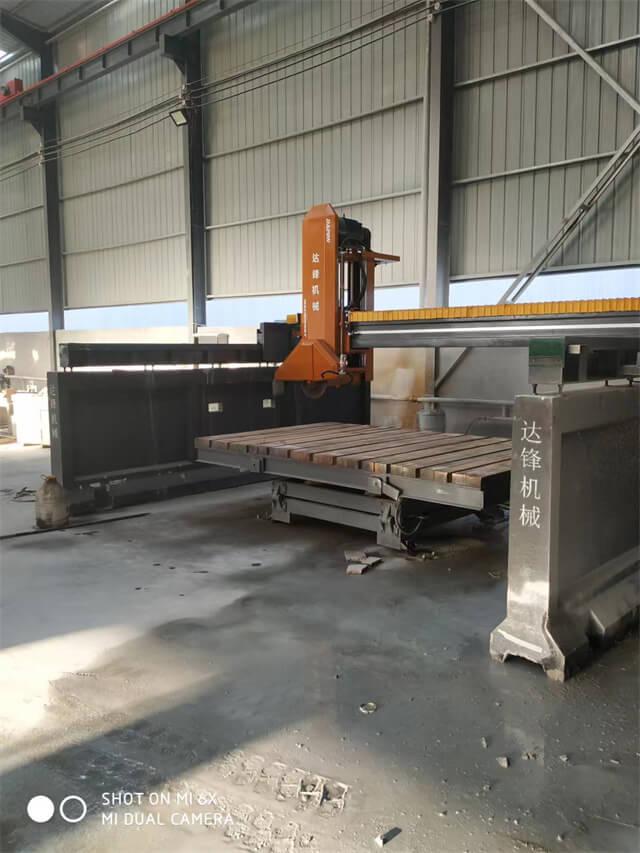

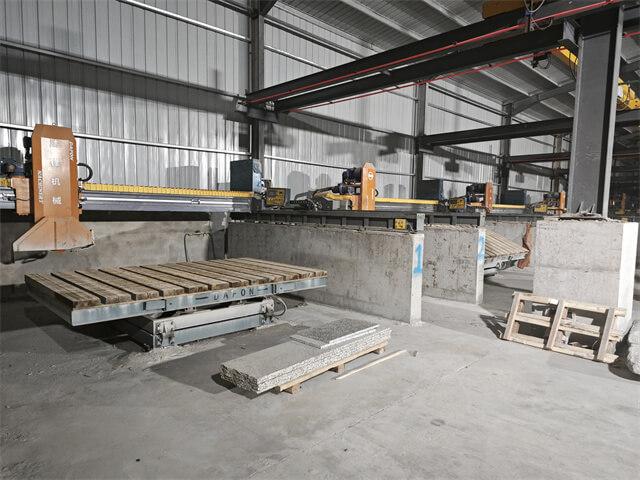

• Customers' Spot
