Price:
Model Number: DFY-CS2000/2500/3000
Power: 11kw
Application: granit,marble,other stone
Weight: 5000kg
Brand Name: DAFON
Certification: CE, ISO
Packaging logistics: In wooded cases with fumigation finish or wrapped with plastic film.

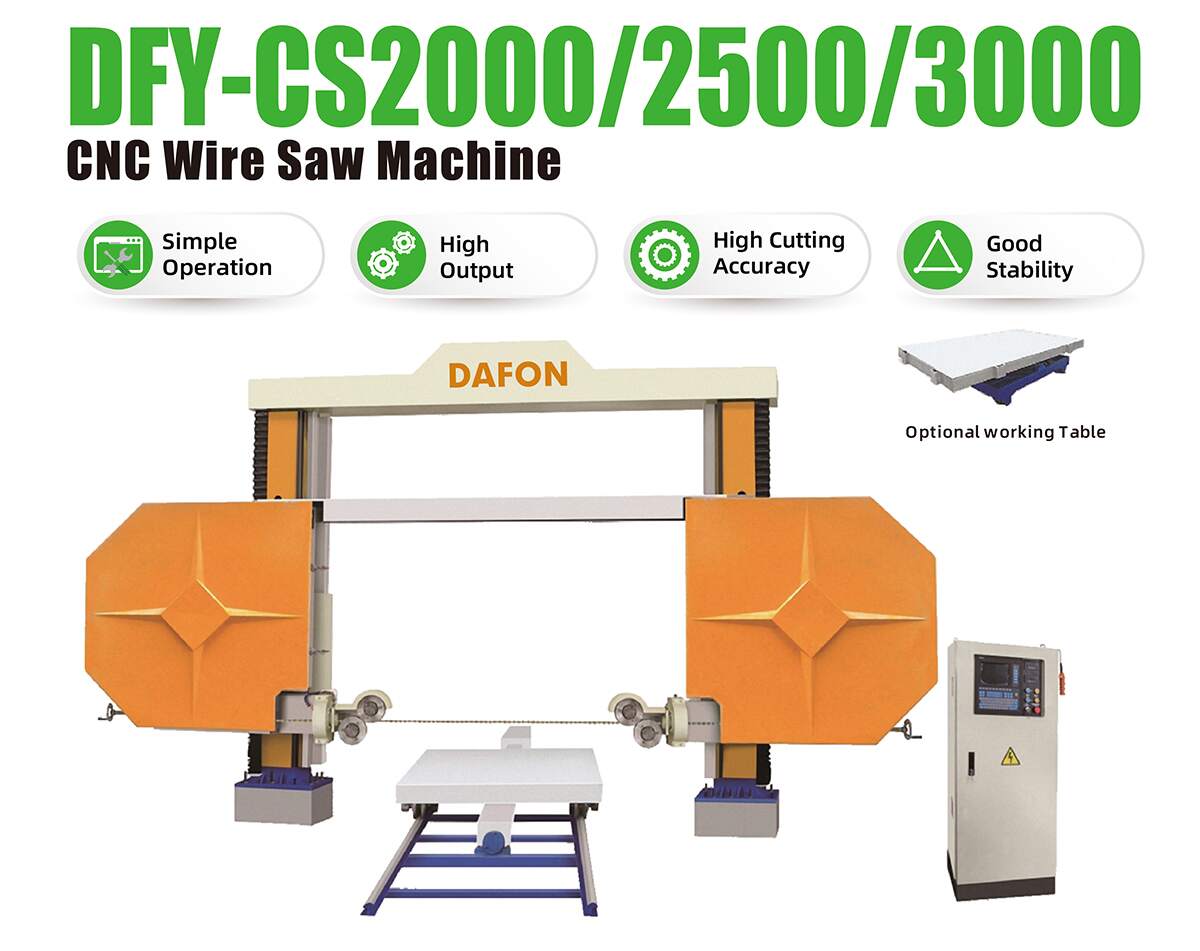

CNC Diamond Wire Shaping Machine, also known as CNC wire saw machine, is a high-precision and high-efficiency stone processing equipment. It adopts computer numerical control technology and four-axis linkage, and can process marble, granite and other stones of various complex shapes. It is widely used in construction, decoration, handicraft production and other fields.
CNC Wire Saw Machine uses diamond wire saw as a cutting tool to accurately cut stone under the control of computer numerical control. Diamond wire saw is made of multiple diamond grits evenly distributed on the wire rope. It has extremely high hardness and wear resistance and can process stones of various hardness.
High processing precision: the CNC system ensures the motion precision of the rope saw, which can realize fine shaped cutting and meet the requirements of high-precision processing.
High processing efficiency: the cutting speed of CNC Diamond Wire saw is fast, more than 10 times higher than the traditional manual cutting efficiency.
Good processing quality: Diamond Wire saw is sharp and wear-resistant, the cutting surface is smooth and flat, no chipping or breaking, excellent processing quality.

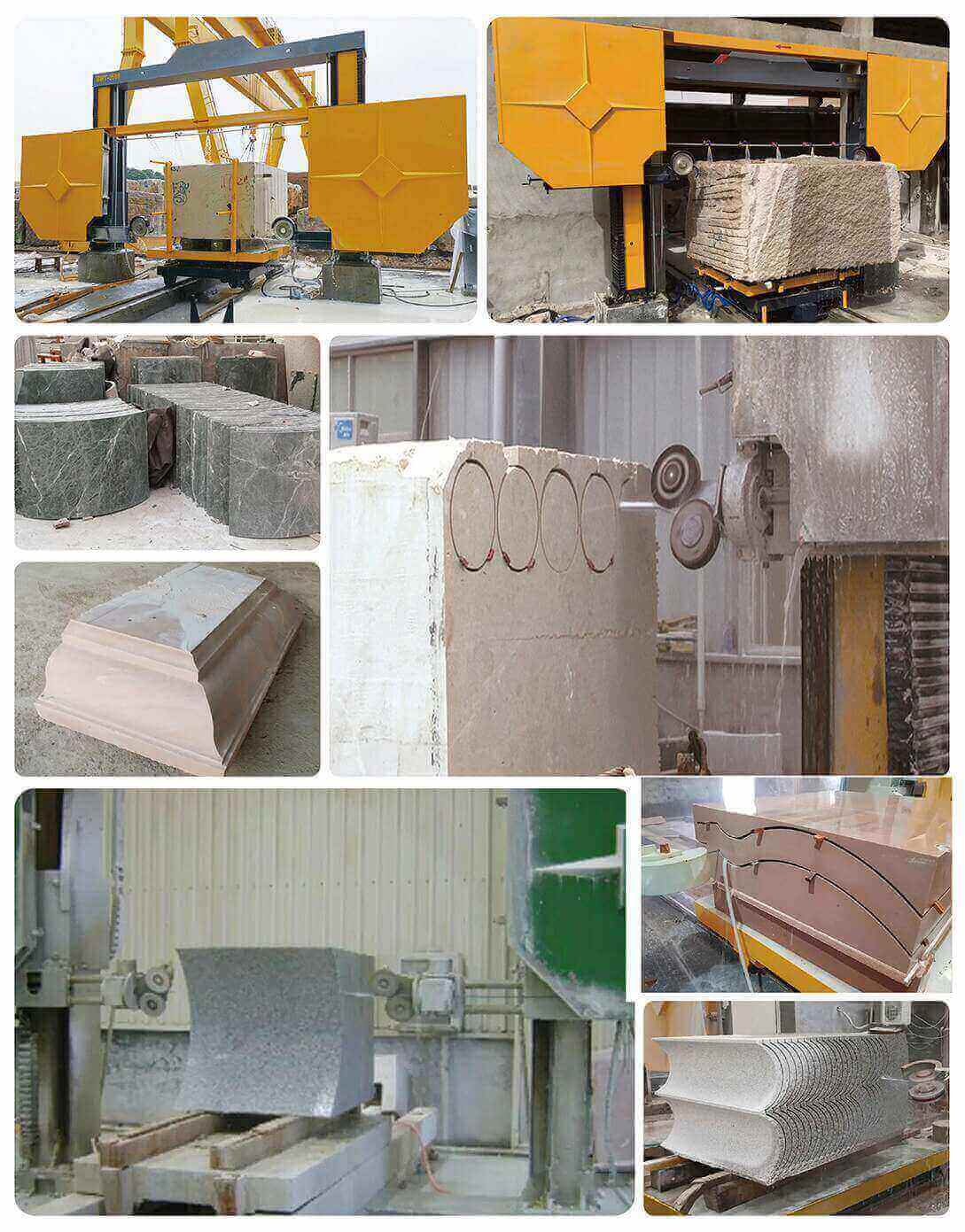

Wide processing range: can be processed arc plate, columns, Roman columns, numbers, letters, Chinese characters and other complex shapes of stone, to meet the diverse processing needs.
Simple and convenient operation: the numerical control system operating interface is intuitive and easy to understand, only need to enter the processing parameters to automatically complete the processing process, reducing labor intensity and technical requirements.
Name | Unit | DFY-CS200 | DFY-CS2500 | DFY-CS |
Processable size(L*W*H) | mm | 3000*2000*1500 | 3000*2500*1500 | 3000*3000*1500 |
Worktable dimension(L*W) | mm | 2500*1300 | 2500*1300 | 2500*1300 |
Main motor power | kw | 7.5 | 7.5 | 7.5 |
Total power | kw | 11 | 11 | 11 |
Water consuption | m³/h | 4 | 4 | 4 |
Weight | kg | 5000 | 5500 | 6000 |
Overall dimensions(L*W*H) | mm | 6500*6300 | 7000*6300*3800 | 7500*6300*3800 |
