marble edge grinding polishing machine

As a manufacturer, DAFON is dedicated to producing high-quality Quartz Stone Grinding Machine.
Price: $11500-$15500
Brand Name: DAFON
Certification: CE, ISO
Model Number: DFMB-11641
Power: 55KW
Weight: 5500KG
Application: Machinery & Hardware, Construction, Stone
Place of Origin: CHINA.
Trading Method: FOB/CIF/EXW Xiamen Port
Minimum Order Quantity: 1 SET
Delivery Time:90 Days
Packaging logistics: In wooded cases with fumigation finish or wrapped with plastic film.

Get Quote

The explanation of edge grinding

The so-called edge grinding is a stone processing technology that grinds one or several edges of a plate into a geometric shape. Common edging names in stone processing: chess edge, French chess edge, French edge, large round edge, 1/4 round edge, double knot edge, crabapple edge, concave round edge (crescent edge), bevel edge, groove edge, Chicken beak edge, double 1/4 round edge, duck beak edge, exposed edge, bevel edge + exposed edge.

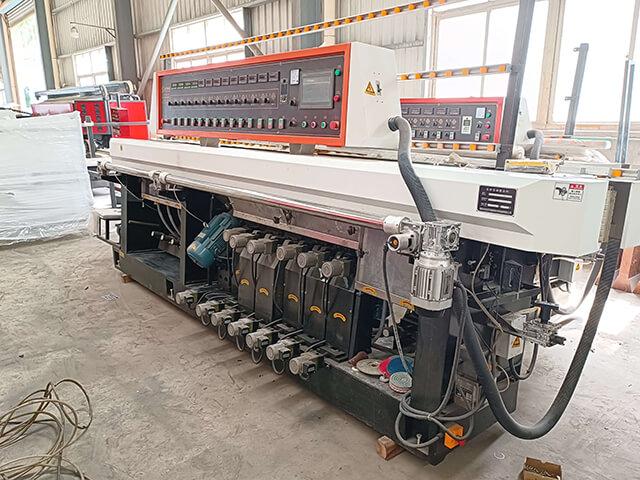

 marble edge grinding polishing machine

The introduction of marble edge grinding polishing machine

Marble edge grinding polishing machine is a processing machine that specializes in grinding, shaping and polishing the flat edges of stone. It is mainly used for stones such as marble, quartz stone, granite or artificial stone slabs to form bright and smooth flat edges and bevels. and various curved edges.

 marble edge grinding polishing machine

The Advantages of marble edge grinding polishing machine

Wide applicability:

Can grind stone lines and shapes of different sizes and thicknesses, with a variety of shapes to choose from

One-time molding:

CNC polishing, rough grinding, fine grinding and polishing are completed in one assembly line;

Improve efficiency:

Fully automatic assembly line grinding greatly improves production efficiency and line quality, saving labor costs;

High product standards

High grinding stability ensures that the stone does not move when grinding and polishing, improving processing efficiency and product quality;

marble edge grinding polishing machine

Technical Parameter of marble edge grinding polishing machine

Feed Output Speed

1m-4m/min

The Minimum Processing Size of Stone

10-80 mm x 80mm

Total Power

40KW

Body Weight

3200KG

Boundary Dimensions

7500mm x 1000mm x 2000mm

marble edge grinding polishing machine



Related Resource


marble edge grinding polishing machineRelated Parts

Side Curve Modeling Processing

Side Curve Modeling Processing


Side chamfering, Grinding of various flat stone edges to suit the size and thickness of the stone.

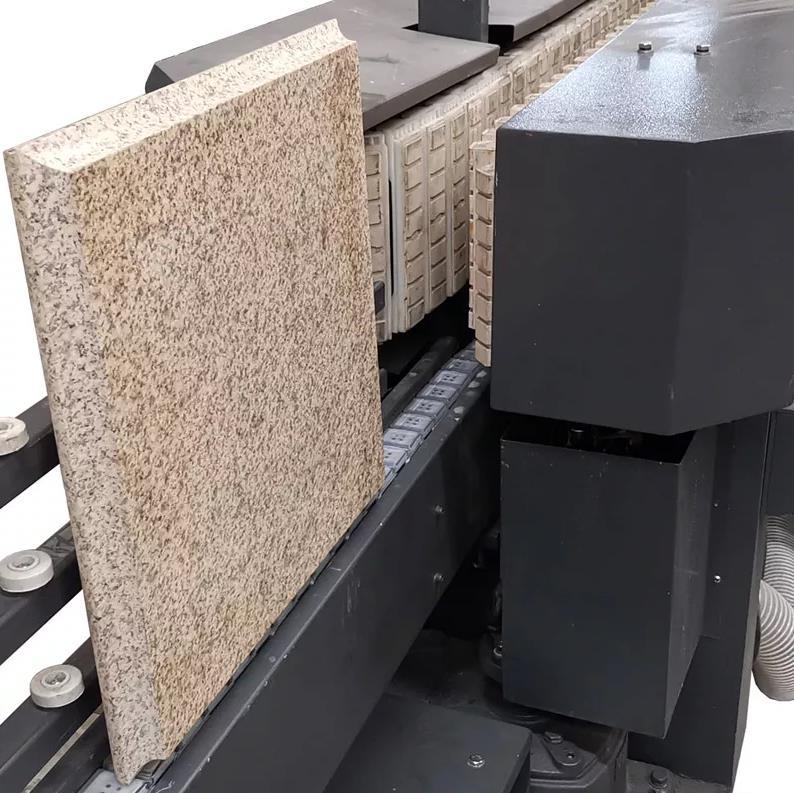

Side Polishing

Side Polishing


Various shaped edges, rough grinding, fine grinding and polishing in one process.

Conveyor Belt

Conveyor Belt


Thickness of processing:10-80mm The minimum processing size of slab : 10-80mm*80mm

Related Process Know More About Process

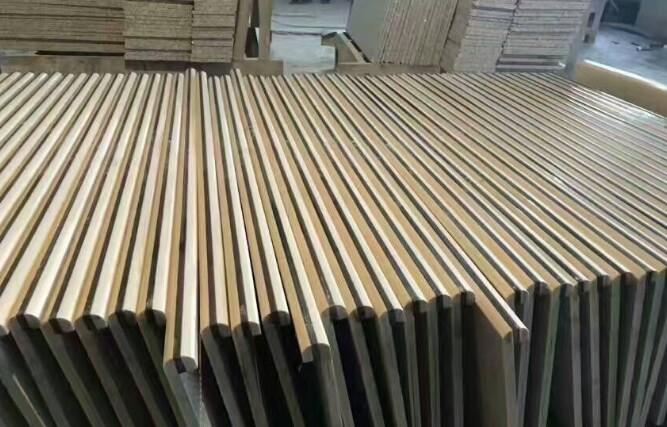

marble edge grinding polishing machineRelated Effect Show

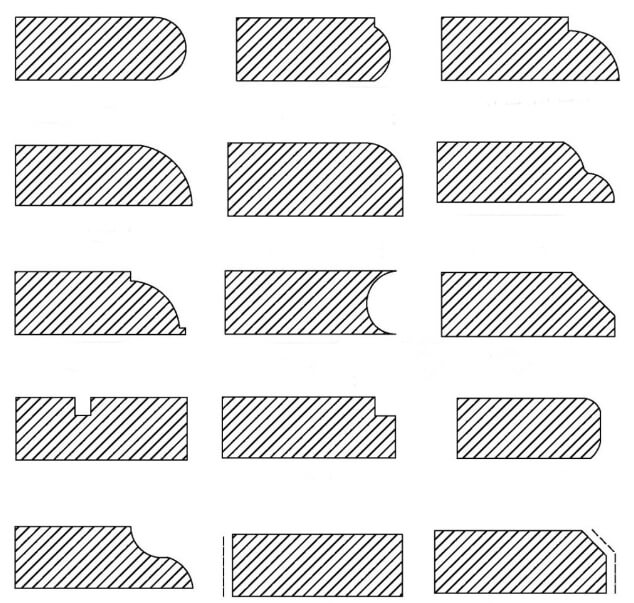

What Shapes Can the Stone Edge Grinding Machine Cut

1. What Shapes Can the Stone Edge Grinding Machine Cut

Grinding is a stone processing technology that grinds one or several edges of the stone into a geometric shape. Stone processing common grinding edge: chess edge, French chess edge, French edge, large round edge, 1/4 round edge, double knuckle edge, begonias edge, concave round edge (crescent e
Related Applications Our safe and stable stone machine are widely applied in the field of stone processing.

Customer Reviews



Score
 Remove

Review Title

Review Text

   Outstanding Precision and Efficiency in Edge Grinding


Mr. Samir  2024-06-12

The marble edge grinding machine is an exceptional piece of equipment. Its precision in shaping and polishing marble edges is unparalleled, ensuring a flawless finish every time.
