Price:
Model Number: DF-2500/2800/3000
Power: 45/55/75KW
Application: Art & Craft, Stone Industry
Weight: 12.5/14/15.5T
Brand Name: DAFON
Certification: CE, ISO
Packaging logistics: In wooded cases with fumigation finish or wrapped with plastic film.
1. Customer need to prepare two sides foundation first with drawing provided by us
2. Install machine and blades

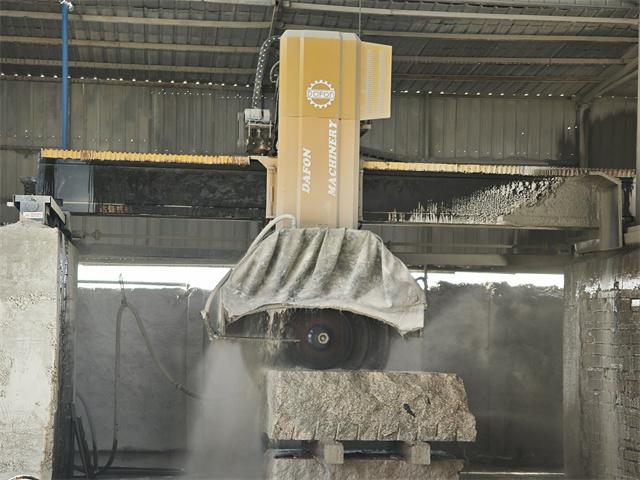

3. Machine cut

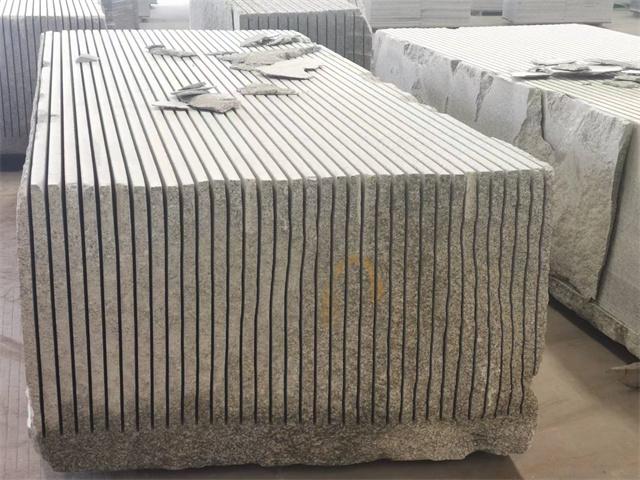

4. take down the slab from block one by one, we can make a mould to support the slab, machine can cut directly to the end and slab will not fall apart
5. Trolley is optional according to customers’ requirement
|
Name |
DF-2500 |
DF-2800 |
DF-3000 |
Unit |
|
main motor power |
45 |
55 |
75 |
KW |
|
Diameter of blade |
Ø1600-2500 |
Ø1600-2800 |
Ø1600-3200 |
mm |
|
Lifting Stroke |
1250 |
1200 |
1100 |
mm |
|
slicing range |
2200 |
2200 |
220 |
mm |
|
Blade Number |
1-12 |
13-18 |
18 |
Pieces |
|
cutting stroke |
5000 |
5000 |
5000 |
mm |
|
weight |
12500 |
14000 |
15500 |
kg |
|
overall dimensions(L*W*H) |
8000*4500*6500 |
8000*4500*6500 |
8000*4500*6500 |
mm |
