Price:
Model Number: DFLSX1200-13S
Power: 22KW/55KW
Application: Machinery & Hardware, Construction, Stone
Weight: 20T
Brand Name: DAFON
Certification: CE, ISO
Packaging logistics: In wooded cases with fumigation finish or wrapped with plastic film.

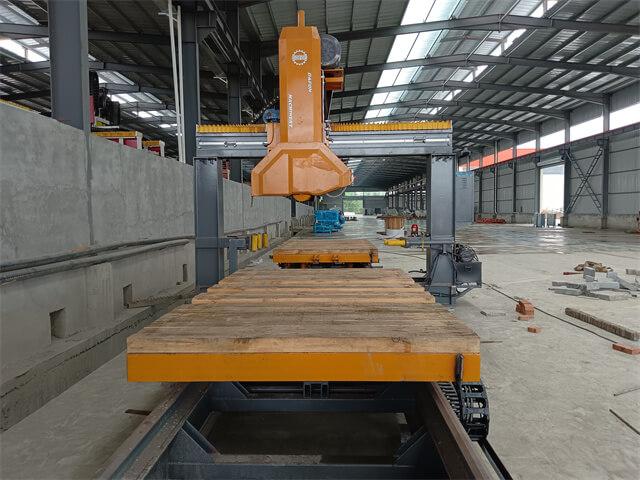

Kerbstone Cutter's Feature
The main part of the kerbstone cutter adopts an integrated casting structure, with thick and stable material, the spindle and other key parts are treated with high-frequency modulation, reasonable structure, high degree of automation, which can be applied to high-hardness granite roadside stone or thick plate cutting.

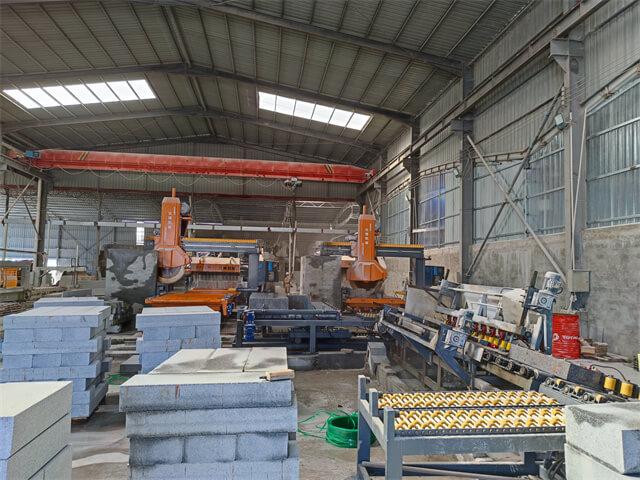

1. The stone is transferred through the roller between two machines, which saves manual loading and unloading time.
2. The transmission chain on the dolly is wrapped with the galvanized plate to ensure the safety of workers' operations.
3. The machine adopts hydraulic lifting and cutting to ensure the cutting quality.
4. The machine is equipped with a mold and a hydraulic arm to ensure the verticality and accuracy of cutting.
The Technical Date of Kerb stone Cutting Machine
|
Complete Machine Line (1 Edge Cutting Machine + 1 Slicing Machine) |
||||
|
Slicing Machine DF1200-12S |
|
Edge Cutting Machine DF1200-1S |
||
|
Dimension |
6000×3000×2800mm |
|
Dimension |
6000×4000×4500mm |
|
Diameter of blade |
1200mm |
|
Diameter of blade |
1200mm |
|
Number of blades |
12pcs |
|
Number of blades |
1pcs |
|
Max.cutting size |
3000×1800×450mm |
|
Worktable size |
2500×1800mm |
|
Worktable size |
2500×1800mm |
|
Working length max |
2500mm |
|
Weight |
10t |
|
Max.vertical stroke |
600mm |
|
Max.cutting depth |
450mm |
|
Weight |
9t |
|
Main motor power |
55kw-6 |
|
Max.cutting depth |
450mm |
|
Max.vertical stroke |
600mm |
|
Main motor power |
22kw-6 |
|
It produces about 30-35m³ of stone every day (24h) and covers a total space of 12m*5m. |
||||
