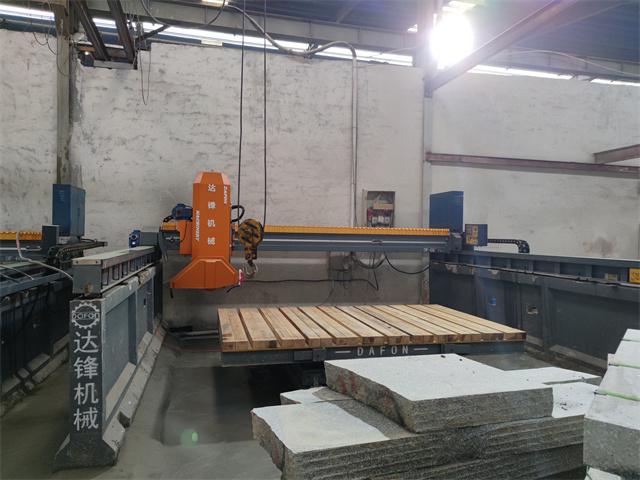

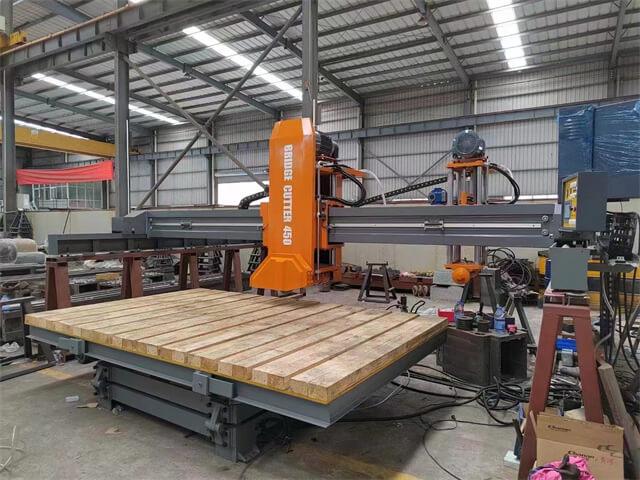

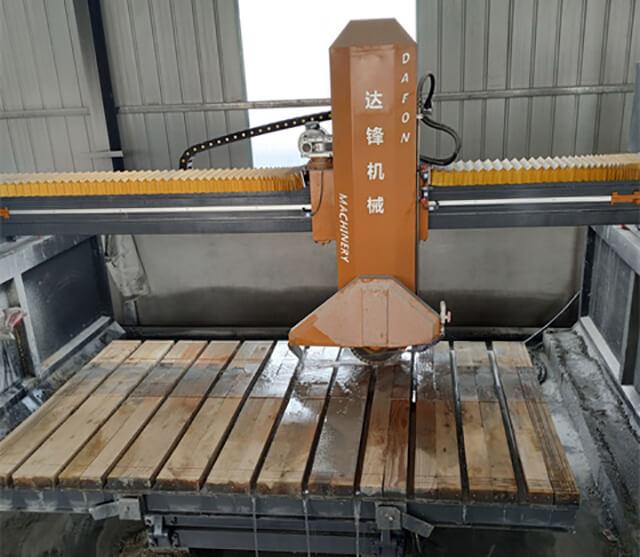

Infrared Bridge Stone Cutting Machine

• Introduction

Infrared bridge stone cutting machine is a high-efficiency, high-precision, easy-to-operate, safe, and reliable stone cutting equipment. lt adopts a laser line that can quickly and accurately cut various stone materials, such as granite, marble, tiles, etc. The infrared bridge stone cutting machine can achieve perfect cutting with high accuracy and ensures the cutting quality with high efficiency. At the same time, thebridge cutting machine adopts an intelligent PLC control system, which is simple and convenient to operate. and can easily complete stone cutting work without professional skills.

• Type of Infrared Bridge Stone Cutting Machine

There are three conventional infrared bridge stone cutting machines on the market, which are divided into three categories according to the diameter of the cutter head, the conventional DF450, DF600, and DF800. The main difference is the depth of cutting. Which one is suitable for your process, depends on the size of the stone slab processing

DFQ-H450:The maximum diameter of the saw blade that can be hung is 450mm, and the maximum depth that can be cut into stone is 110mm.

DFQ-H600:The maximum diameter of the saw blade that can be hung is 600mm, and the maximum depth that can be cut into stone is 180mm.

DFQ-H800:The maximum diameter of the saw blade that can be hung is 800mm, and the maximum depth that can be cut into stone is 280mm.

• Technical Parameters

• Advantages

1. It is made of a casting beam to avoid distortion after long-term use and in a low-temperature environment. side beams are fixed on the steel, solid and stable.

2. The bridge-cutting machine granite speed is controlled by the inverter to achieve step-less adjustment, the head movements, table title up, rotation, and position use hydraulic transmission to move. stone cutter saw machine can be cut manually and fully automatic easily.

3. Bridge stone cutting machine adopts a PLC programmable control system and touch screen operator and is combined with high precision encode positioning(Omron brand encoder).

4. The Worktable can tilt 0-85° and can rotate 0-90°, it is convenient for cutting stone

5.  The machine is easy to operate and maintain, even for operators with little experience.

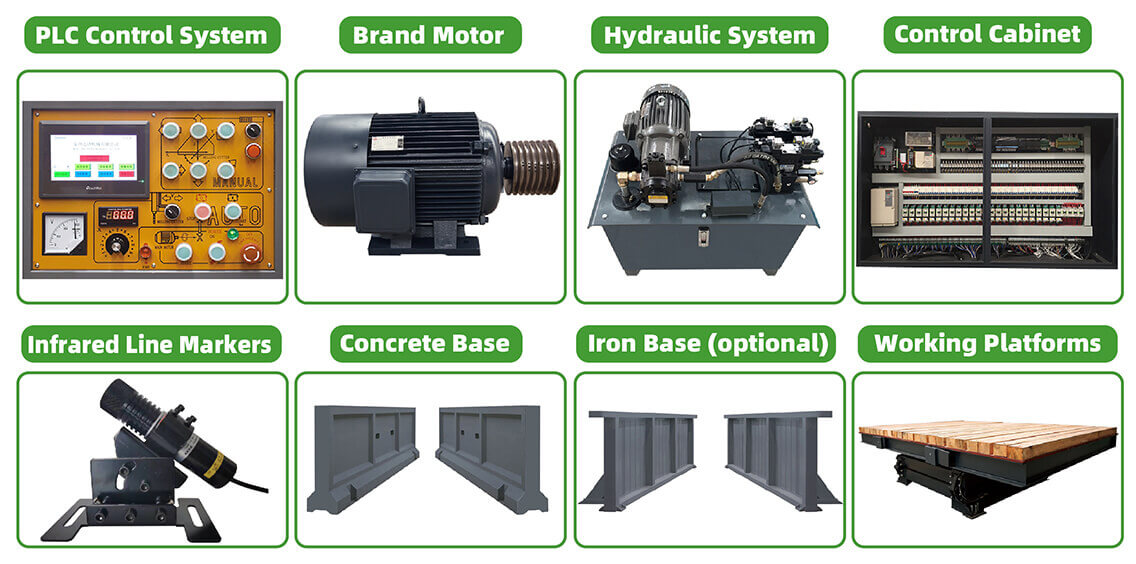

•  Detail Show

• Applications

Granite Countertops

The bridge cutting machine is perfect for cutting granite slabs into accurately sized pieces for creating custom countertops with smooth edges and precise dimensions.

Tile Production

This machine excels at cutting granite blocks into tiles of various sizes and thicknesses. It ensures consistent quality and precision, making it an ideal solution for tile manufacturers.

Monument/Headstone Carving

The machine's advanced technology and precise cutting abilities make it suitable for intricate carving and shaping of granite to create unique and personalized monuments and headstones.
