Price:
Model Number: DFY-R45
Power: 22/45kw
Application: marble,granite,limestone ect
Weight: 2200/3200kg
Brand Name: DAFON
Certification: CE, ISO
Packaging logistics: In wooded cases with fumigation finish or wrapped with plastic film.

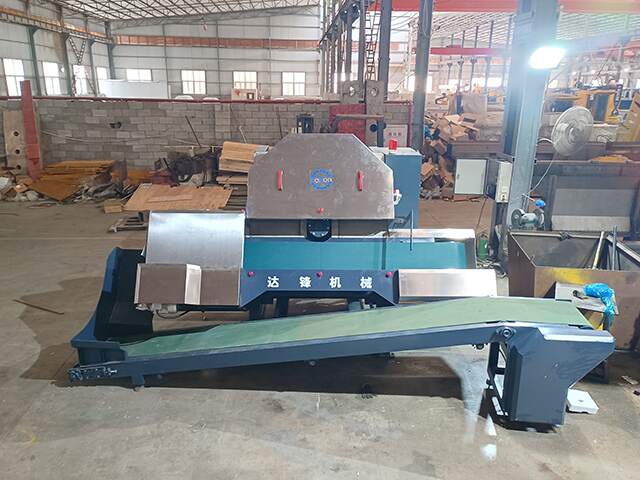

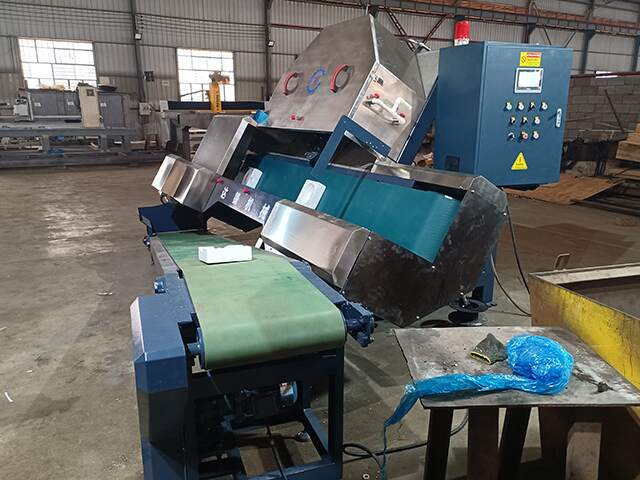

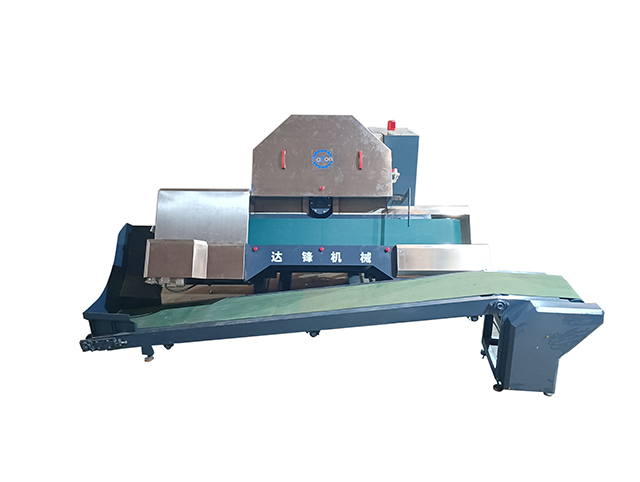

Stone Thin Veneer Saw can process large blocks of stone into uniform, thin and strong stone slabs. It is an efficient equipment for cutting stone thin slabs, mainly used in the construction and decoration industries
Efficient and effective cutting: equipped with a powerful motor and high-precision diamond saw blades, it is able to quickly and stably complete large-volume cutting tasks, significantly increasing production efficiency.
Multiple cutting types: capable of cutting various types of natural stone, including granite, marble, sandstone, etc.
Easy operation: humanized operation interface and automated function design make the operation easy to learn and reduce the operator's training time and operation errors.
Name |
unit |
DFY-R22 |
DFY-R45 |
Load saw blade diameter |
mm |
800 |
1000-1200 |
Blade Speed Standard(adjustable) |
mm |
Max.900 |
Max.780 |
Max.stone height |
mm |
0-350 |
0-450 |
Max.stone thickness |
mm |
20-220 |
20-270 |
Max.cutting depth |
mm |
280 |
350-450 |
Saw blade adjustable distance(up/down) |
mm |
0-120 |
0-250 |
Saw blade adjustable distance(back/forth) |
mm |
0-220 |
0-250 |
Conveyor belt dimensions(L*W*H) |
mm |
5970*280*7 |
6800*400*7 |
Conveyor belt speed(adjustable) |
mm/min |
600-2450 |
600-2450 |
Water consumption |
m³/h |
3.5 |
4 |
Amperage |
A |
86/43 |
172/86 |
Electric power source |
|
380v 50hz |
380v 50hz |
Main motor power |
kw |
30HP(22KW) |
60HP(45KW) |
Weight |
kg |
2300 |
3200 |
Overall dimensions(L*W*H) |
mm |
2850*1900*1800 |
3300*2180*2180 |
