Price:
Model Number: DFQ-C800/1000/1200
Power:
Application:
Weight: 85-95kg
Brand Name: DAFON
Certification: CE, ISO
Packaging logistics: In wooded cases with fumigation finish or wrapped with plastic film.

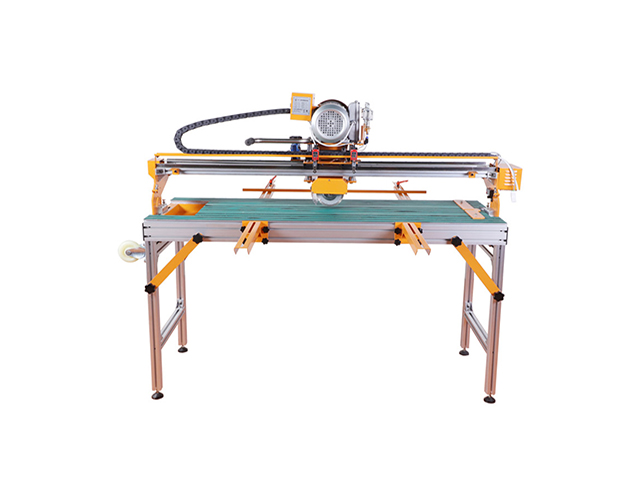

Introduction
A tile cutting machine is a common construction tool, mainly used for cutting tiles, marble, granite, and other hard materials. It adopts advanced electric power technology and cutting technology with stable performance and ease of use, which greatly improves construction efficiency and quality.
The tile cutter is characterized by easy operation, compact structure, small size, lightweight, low noise, high cutting precision, neat cut, smooth operation, and so on.
The use of electric tile cutters can dramatically improve the efficiency of masonry cutting, while also saving workers' time and labor costs. The use of a tile cutter will not cause too much damage and waste to the tiles because of the neat cut and the small heat generated during the cutting process.

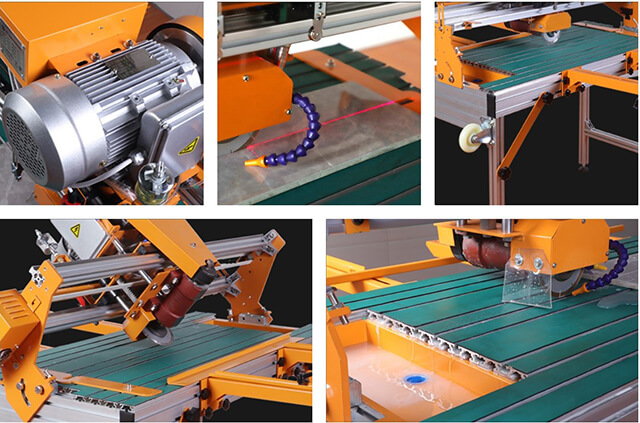

Performance Features
powerful:Adopting 2300W high power full copper core big motor, strong power, long time continuous work.
High precision:Adopting laser infrared cutting technology, laser alignment is effective to see the error when cutting.
Portable chamfering design:0~45° multi-angle cutting, chamfering fast switching.
Lightweight design:The body is made of aluminium alloy material is lightweight and can be easily pulled even by one person.
Automatic recirculating water refill:With auto-circulating water refill function and dust-free cutting.
easy handling:No need to manually measure and scribe, accurate and zero error.
Technical Date
name
unit
DFQ-C800
DFQ-C1000
DFQ-C1200
Cutting length
mm
800
1000
1200
Blade Diameter
mm
Φ130
Φ130
Φ130
Grinding wheel diameter
mm
Φ120
Φ120
Φ120
Depth of cut
mm
30
30
30
rated speed
r/min
7200
7200
7200
rating
w
2200
2200
2200
rated voltage
v
220/380
220/380
220/380
Weight
kg
85
90
95
