Price:
Model Number: DFQ-B500
Power: 30KW
Application: Machinery & Hardware, Construction, Stone
Weight: 6100 KG
Brand Name: DAFON
Certification: CE, ISO
Packaging logistics: In wooded cases with fumigation finish or wrapped with plastic film.

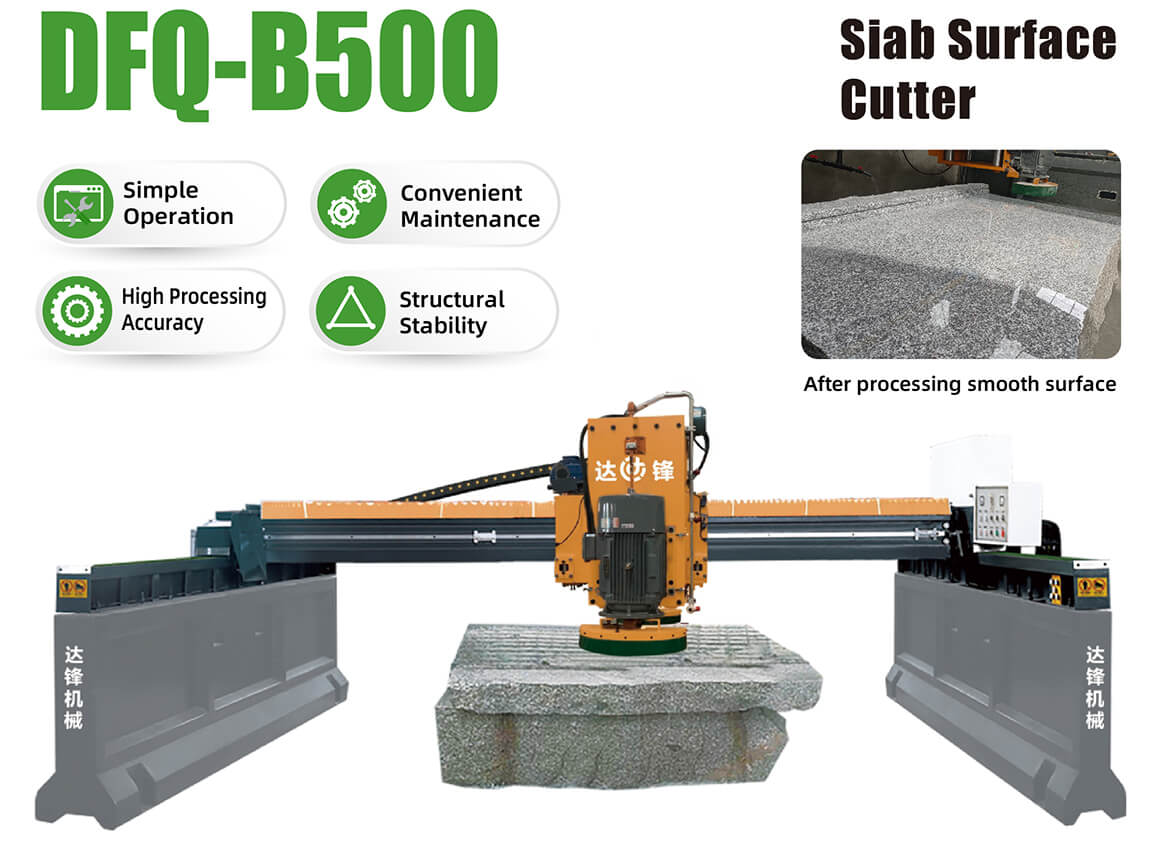

This Stone Slab Surface Cutteris mainly used for horizontal cutting and leveling the bottom of the board left after large-scale cutting and unloading, to achieve the purpose of waste utilization and resource conservation. It is suitable for the processing of various stone materials, including marble, granite, limestone, etc., and can meet the needs of different customers.

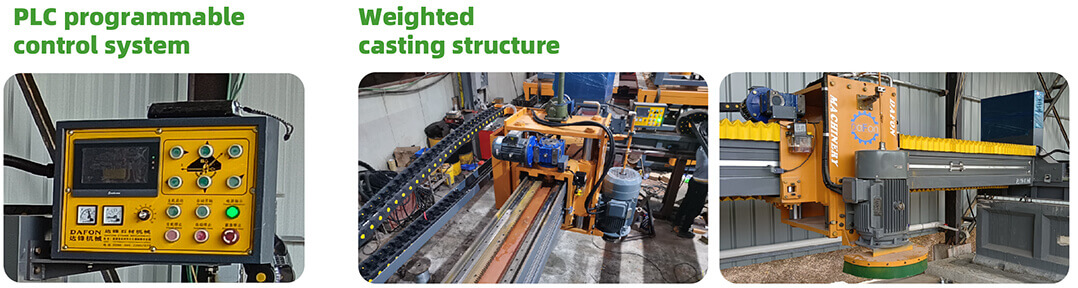

Strong structure: Heavy-duty casting structure ensures excellent stability and load-bearing capacity of the equipment, and can withstand strong processing force and heavy weight.
High processing precision: Advanced processing technology and special diamond saw blades are used to achieve excellent processing results and excellent precision.
Easy operation: PLC programmable control system and human-computer interactive operation interface are adopted, which is easy to learn and quick to use.
Convenient maintenance: Modular design, convenient and fast maintenance, quick replacement of parts, effectively reducing downtime.
| Name | Unit | DFQ-B500 |
| Max.Processing size(L*W*H) | mm | 3000*2000*300 |
| Up & down range | mm | 300 |
| Blade Diameter | mm | 450-500 |
| Total Power | kw | 35 |
| Main motor power | kw | 30 |
| Max.cutting depth | mm | 120 |
| water consumption | m³/h | 4 |
| weight | kg | 6100 |
| overall dimensions(L*W*H) | mm | 3500*5800*2800 |
