best marble mining machinery

As a manufacturer, DAFON is dedicated to producing high-quality marble mining machinery.
Price: $13500-$31000
Brand Name: DAFON
Model Number: DFK-YKZ3600/3800/4200
Power: 45/55/65X2 Kw
Weight: 8000kg/11500kg/12000kg
Application: Machinery & Hardware, Construction, Stone
Trading Method: FOB/CIF/EXW Xiamen Port
Minimum Order Quantity: 1 SET
Certification: CE, ISO
Delivery Time:90 Days
Place of Origin: CHINA.
Packaging logistics: In wooded cases with fumigation finish or wrapped with plastic film.

Get Quote


  • The Introduction marble mining machinery


In the traditional rock quarry mining which using dynamic blasting, the rate of finish product is only about 30-35%. DAFON is a quarry equipment manufacturers for the year has rich mining experience in granite/marble/limestone etc.

The new mining method is to apply a double blade stone quarry mining machine to cut the quarry rock directly, the finish product rate can be up to 90%, it improves the utilization of natural resources. Meanwhile double blades quarry mining machine is environmentally friendly equipment which avoids slag dust and smoke pollution during the opening process.

The quality of quarry is improved due to lack of shock and blasting, it is safer for a worker in open pit quarry mining.

This surface mining equipment adopts hydraulic pressure elevating, vibration running, simple circuit, and easy maintenance, which bring high efficiency and economic benefits to customers.

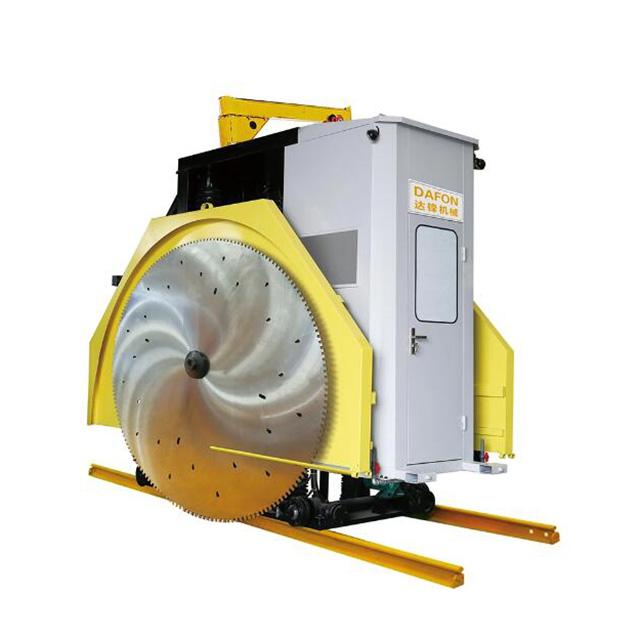

 quarry mining machine

  • Technical Data


Product name

Unit

DF-1360/1900

DF-1500/2000

DF- 1950/2450

DF-2600/3100

Diameter of driving wheel

mm

Φ2200×2-Φ3500×2

Φ2200×2-Φ3600×2

Φ2200×2-Φ4800×2

Φ2200×2-Φ4800×2

Cutting width

mm

160-1900

1500-2000

1950-2450

2600-3100

Max cutting depth

mm

1500

1550

2150

2150

Main motor power

kw

45×2/55×2

45×2/55×2

45×2/65×2

45×2/65×2

Water consumption

m3/h

5

5

5

5

Toyal power

kw

97.7/117.7

97.7/117.7

99.2/139.2

99.2/139.2

Dimension of external form

mm

3540×1600×2710

3540×1600×2710

3540×1600×2710

3540×1600×2710

Toyal weight

kg

≈8000

≈8000

≈11500

≈12000



quarry mining machine

  • The Advantage of marble mining machinery



High Efficiency: Stone quarry mining machines are designed to extract large blocks of stone with minimal effort and time. They are equipped with high-performance engines and hydraulic systems that provide power and speed to the machine.

Large Capacity: Stone quarry mining machines have a large storage capacity for storing extracted stone blocks. They can hold several tons of stone at a time, allowing operators to work continuously without interruption.

Durability: These machines are built to withstand the harsh working conditions of a quarry. They are made from heavy-duty materials such as steel and are designed to resist wear and tear caused by constant use.

Versatility: Stone quarry mining machines are versatile and can be used to extract different types of stones, such as limestone, granite, and marble. They can also be used for other tasks such as drilling, blasting, and cutting.

Safety Features: These machines are equipped with safety features such as emergency stop buttons, safety guards, and warning lights. They also have sensors that detect any potential hazards, such as rocks or debris that could cause damage to the machine or harm the operator.

Operator Comfort: Many stone quarry mining machines have features that provide operator comfort, such as air-conditioned cabins, ergonomic controls, and vibration dampening systems. This makes it easier for operators to work for long hours without experiencing fatigue.

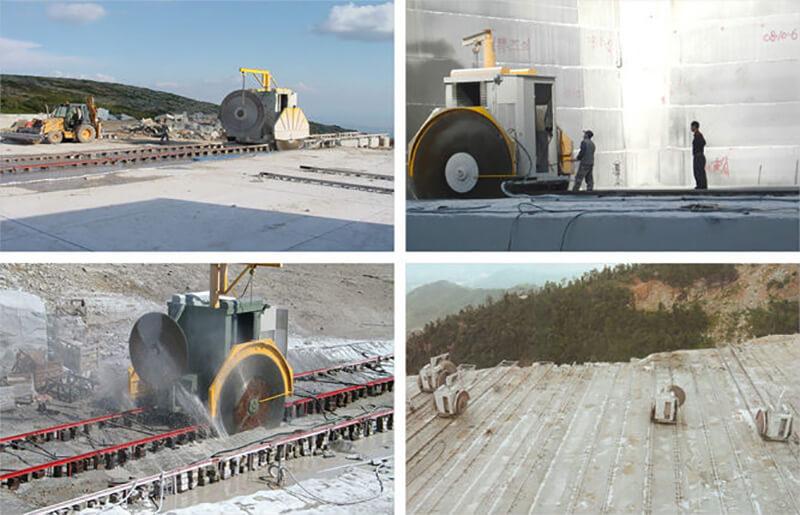

  • Successful Project



dafon quarry ming machine.jpg



Related Resource


Start Customizing Your
best marble mining machinery!
Get Price
best marble mining machineryMain Parts
Throttle valve

1. Throttle valve

A throttle valve is a mechanical device that controls the amount of air or fluid that enters an engine or other mechanical system.

2. oil pump

The oil pump plays a crucial role in the lubrication system of an internal combustion engine. Its main function is to circulate oil throughout the engine to lubricate moving parts, reduce friction and prevent wear and tear.
oil pump
Electrical control box

3. Electrical control box

An electric control box is an enclosure that houses electrical components and controls for the purpose of managing and regulating electrical systems.

Related Features

Professional R&D team Professional R&D team
Win-Win Benefit Win-Win Benefit
Advanced Equipment Advanced Equipment
High Quality High Quality & Good Service
Your Professional best marble mining machinery Supplier in China.
We have strong power to support our production, from factory environment construction to equipment configuration, all leading to high quality products.
Fully sealed design, prolonged life

Fully sealed design, prolonged life

Fully sealed design, prolonged life Cylindrical guide rail adopts a fully sealed design to ensure no pollution. reduces the number of maintenance times and costs.
Safety and environmental protection, low cost and high efficiency

Safety and environmental protection, low cost and high efficiency

Safety and environmental protection, low cost and high efficiency Compared with the traditional blasting mining methods, the circular saw blade cutting is safer, more environmentally friendly, low cost, and high efficiency.
best marble mining machinery
Related Complementary Products
What other Kind of Machine can Mine a Mine
What other Kind of Machine can Mine a Mine
Rope Saw Machine Mining rope saw machine is mainly used for mining barren materials and trimming, using unique digital frequency converter control, can accurately adjust the speed of diamond beading rope, to achieve the best cutting effect Efficient mining Rope saw machines are powerful
Related Process More About best marble mining machinery Process

Customer Reviews



Score
 Remove

Review Title

Review Text

   powerful double-blade quarry mining machine


Hector Tingson  2024-07-27

This double-blade quarry mining machine is easy to operate and highly efficient. It not only greatly improves the quarrying speed, but also reduces labor costs. It is a powerful assistant in our quarry.
