Price:
Brand Name: DAFON

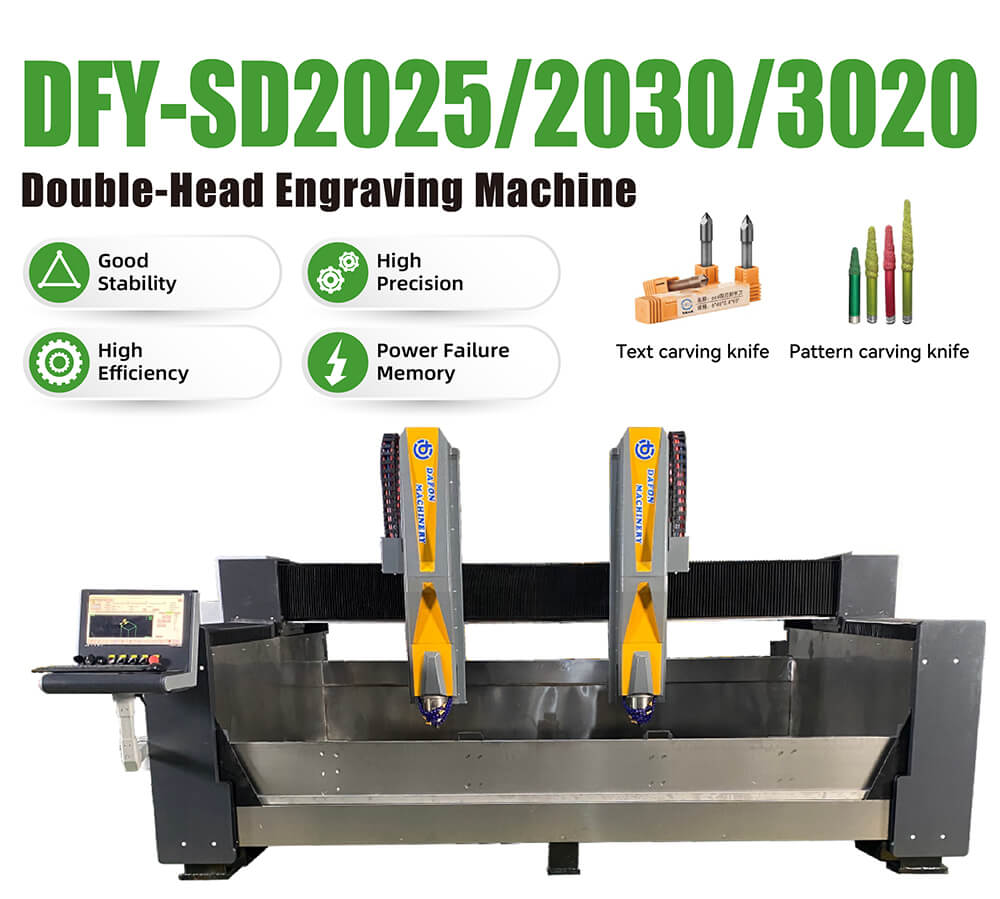

Model Number: DFY-SD2025/2030/3020
Power: 3.2~5.5kw
Weight: 4000kg
Application: stone/marble/granite
Trading Method: FOB/CIF/EXW Xiamen Port
Minimum Order Quantity: 1 SET
Certification: CE, ISO
Delivery Time:90 Days
Place of Origin: CHINA.
Packaging logistics: In wooded cases with fumigation finish or wrapped with plastic film.

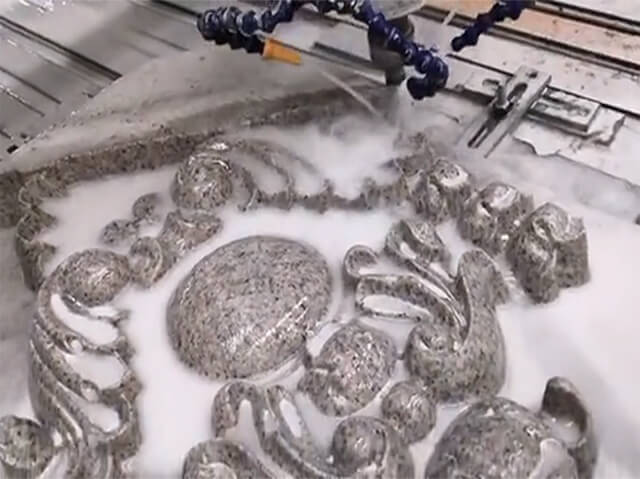

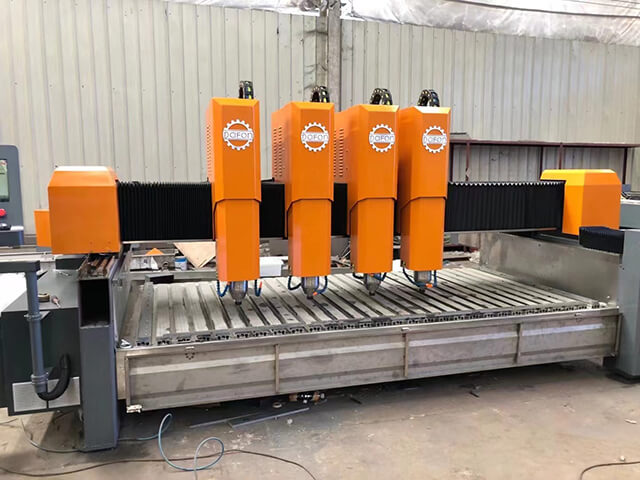

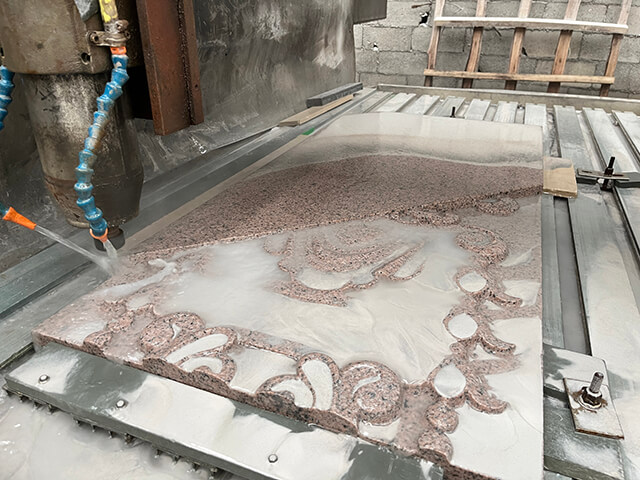

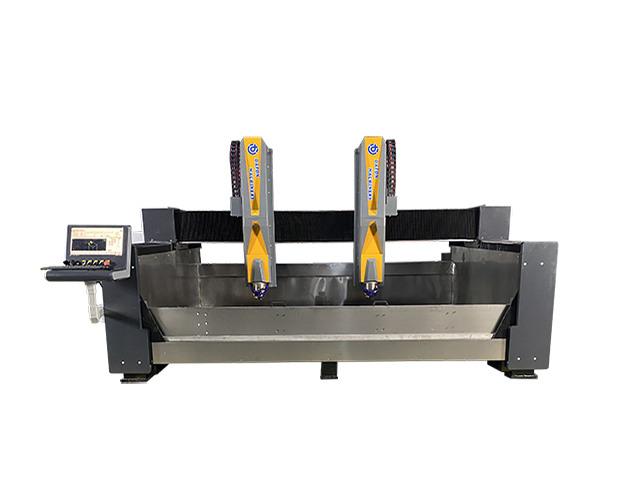

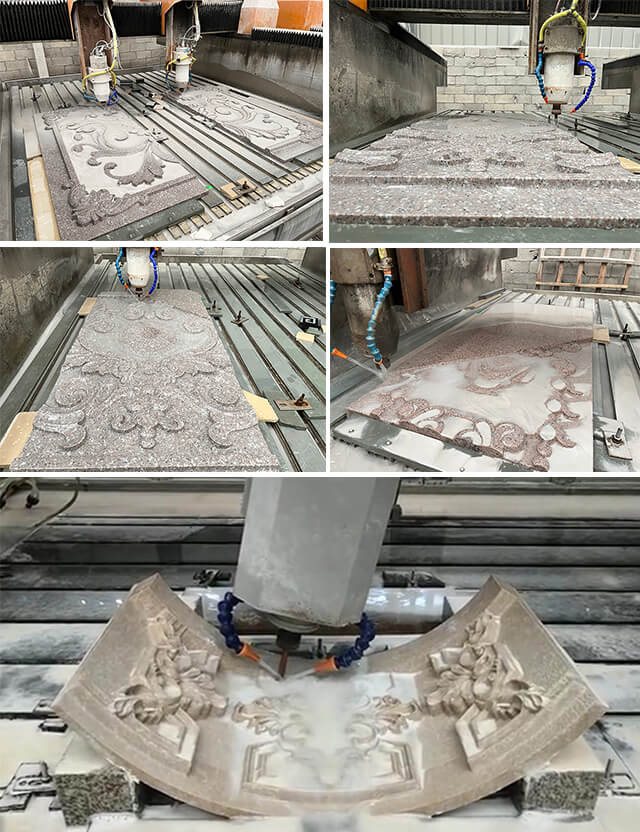

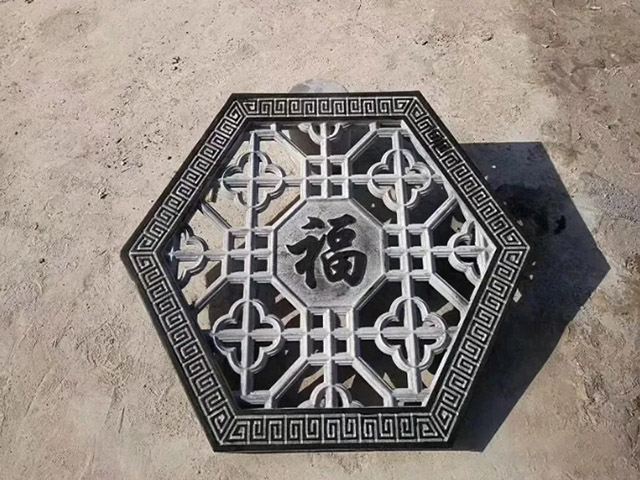

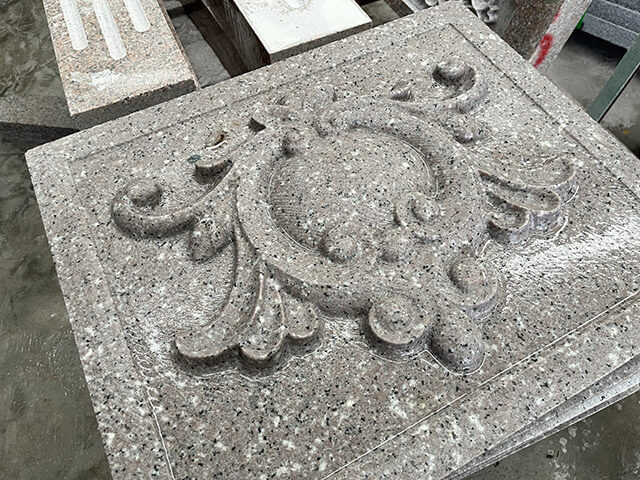

Granite Stone Engraving Machine has the characteristics of fast speed, high precision, good stability, etc. At the same time, it has the function of memory of power failure, which can realize power failure and knife renewal carving and it is suitable for processing of granite, marble, Shoushan stone, lapis lazuli, jadeite, jadeite, crystal, tombstone, headstone, onyx ink stone, and so on.
Good Stability

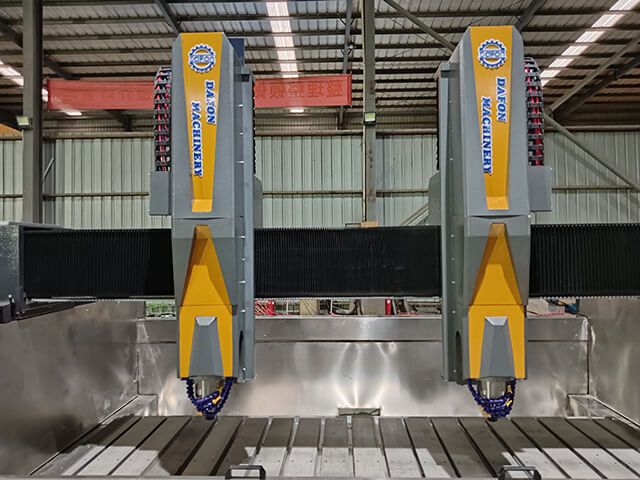

This equipment adopts a famous brand servo motor and reducer, fast speed, and stable operation.
High Precision
Adopting widened imported linear guide rail, with large load-bearing capacity, smooth running, and high precision.
High Efficiency
Adopting constant power spindle motor, high cutting force and high productivity
Power Failure Memory
Adopting CNC digital control, with power failure memory function, with power failure and knife renewal carving function.
Durable
The machine adopts steel structure, good steel is not easy to deform, bearing capacity can reach more than 4 tonnes.
|
Name |
Unit |
DFY-SD2025 |
DFY-SD2030 |
DFY-SD3020 |
|
platform size |
mm |
2000*2500 |
2000*3000 | 3000*2000 |
|
workatble size |
mm |
900*2400*2 | 900*2900*2 |
1400*1900*2
850*1900*3
650*1900*4
|
| feed height |
mm
|
≤430 | ≤430 | ≤430 |
|
airspeed
|
m/min
|
15 | 15 |
15
|
|
processing speed |
m/min
|
10 |
10 |
10 |
|
spindle power
|
kw
|
3.2~5.5 | 3.2~5.5 | 3.2~5.5 |
|
spindle speed
|
rpm/min |
6000~24000
|
6000~24000 | 6000~24000 |
|
electrical machinery
|
Motor
|
can customized
|
can customized
|
can customized
|
|
operating voltage
|
V
|
AC220V/50HZ or AC380V/50HZ
|
AC220V/50HZ or AC380V/50HZ
|
AC220V/50HZ or AC380V/50HZ
|
|
props |
ET
|
￠3.175/4/6/12.7mm
|
￠3.175/4/6/12.7mm
|
￠3.175/4/6/12.7mm
|
|
file format |
FF |
G代码 / HPGL |
G代码 / HPGL |
G代码 / HPGL |
|
position accuracy |
mm |
±0.03 |
±0.03 |
±0.03 |
|
Repeat Positioning
Accuracy
|
mm |
±0.02 |
±0.02 |
±0.02 |
|
control system
|
CS
|
CA-100（N60A） |
CA-100（N60A） |
CA-100（N60A） |
|
Overall dimensions
(L*W*H)
|
mm
|
3100*3900*2200
|
3100*3900*2200
|
4300*3000*2200
|
| Weight |
kg
|
2600
|
2800 |
2900 |
