Price:
Model Number: DFLSX1200-13S
Power: 55KW&22KW
Application: kerbstone cutting
Weight: 20T
Brand Name: DAFON
Certification: CE, ISO
Packaging logistics: In wooded cases with fumigation finish or wrapped with plastic film.
Introduction

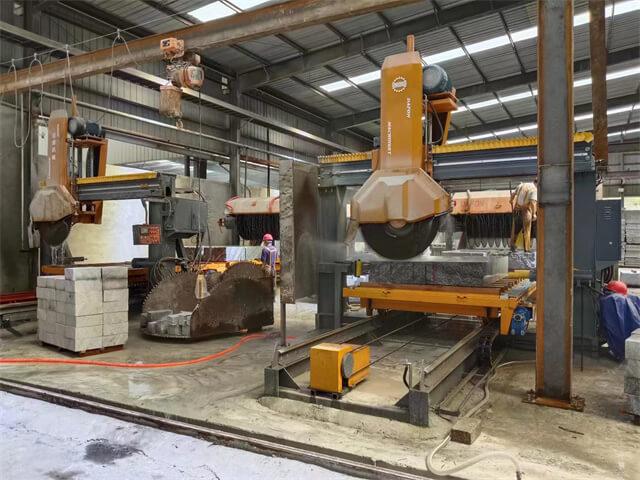

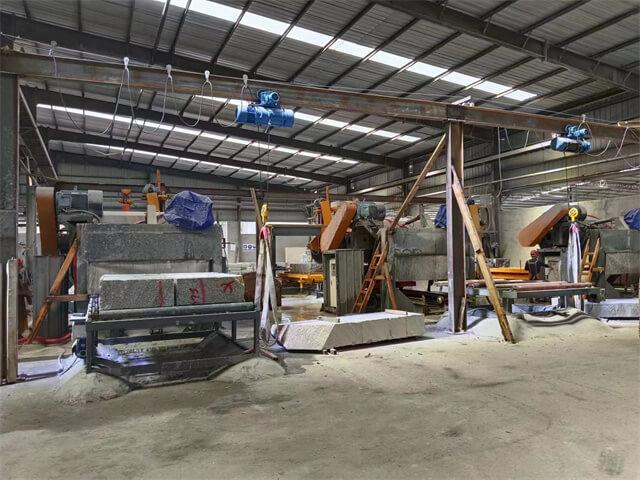

Dafeng Machinery's Kerbstone cutter has made major breakthroughs compared to other curb stone equipment in terms of processing output and processing quality.
First of all, the whole machine adopts vertical and horizontal cutting methods. It is an integrated operation to achieve one-time molding of finished products. It has the characteristics of intelligence, linkage, high efficiency, and low cost.
It occupies a small area. The area occupied by one curb stone assembly line is equivalent to the area occupied by four center cutters, which can save twice the space. Can be customized according to process requirements.
Advantages
The production efficiency of the Kerbstone cutter line is very high, with a daily output of up to 100 cubic meters. It only requires four workers to operate, which is 60% more efficient than traditional cutting machines. It also has a major advantage in that it uses a multi-knife cutting and slicing machine, with less cutting volume and fast walking speed. It is a shallow and fast cutting method, which not only saves the loss of the Saw Blade but also ensures the flatness and smoothness of the cutting board. The thickness has obvious advantages over traditional cutting machines. The entire board is cut smooth, even in thickness, elegant and beautiful. The main machine adopts main and auxiliary shafts to connect two-way supports, which ensures precise cutting and high efficiency, showing outstanding performance.
Application
With the help of a good quality Curbstone Machine for Sale, you can easily produce different types of concrete products with different shapes, sizes, colors, and textures.

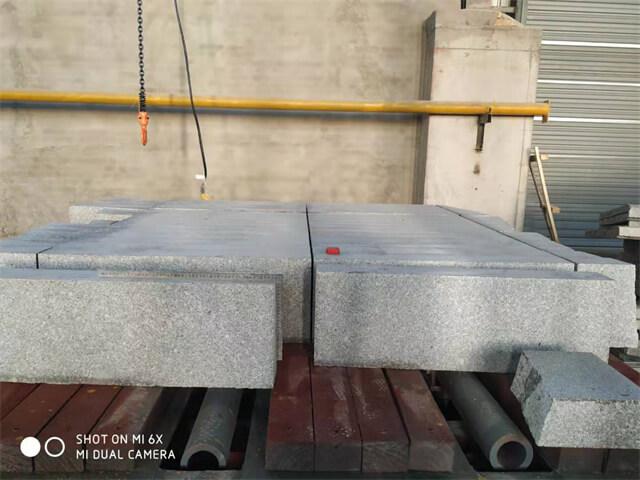

1. Standard Curbstones - These are the most commonly used curbstones, found along most roads and sidewalks.
2. Border Stones - Border stones are used to line and separate different areas such as lawns, flower beds, or driveways.
3. Curb and Gutter Stones - These types of curbstones are used in urban areas to control the flow of water and prevent flooding.
4. Decorative Curbstones - These curbstones come in different shapes, sizes, and patterns, and are designed to enhance the look of your landscape.
5. Parking Curbs - Parking curbs are often used in commercial buildings and are designed to delineate parking spaces and protect buildings from vehicular damage.
6. Barrier Curbs - Barrier curbs are used to prevent vehicles from accessing certain areas such as pedestrian walkways, bike lanes, or grassy areas.
Technical Parameters
Complete Machine Line (1 Edge Cutting Machine + 1 Slicing Machine) |
||||
Slicing Machine DF1200-12S |
|
Edge Cutting Machine DF1200-1S |
||
Dimension |
6000×3000×2800mm |
|
Dimension |
6000×4000×4500mm |
Diameter of blade |
1200mm |
|
Diameter of blade |
1200mm |
Number of blades |
12pcs |
|
Number of blades |
1pcs |
Max.cutting size |
3000×1800×450mm |
|
Worktable size |
2500×1800mm |
Worktable size |
2500×1800mm |
|
Working length max |
2500mm |
Weight |
10t |
|
Max.vertical stroke |
600mm |
Max.cutting depth |
450mm |
|
Weight |
9t |
Main motor power |
55kw-6 |
|
Max.cutting depth |
450mm |
Max.vertical stroke |
600mm |
|
Main motor power |
22kw-6 |
It produces about 30-35m³ of stone every day (24h) and covers a total space of 12m*5m. |
