Price:
Model Number: DF- 2500/2800/3000
Power: 45/55/75kw optional
Application: Machinery & Hardware, Construction, Stone
Weight: 12.5/14/15.5t
Brand Name: DAFON
Certification: CE, ISO
Packaging logistics: In wooded cases with fumigation finish or wrapped with plastic film.

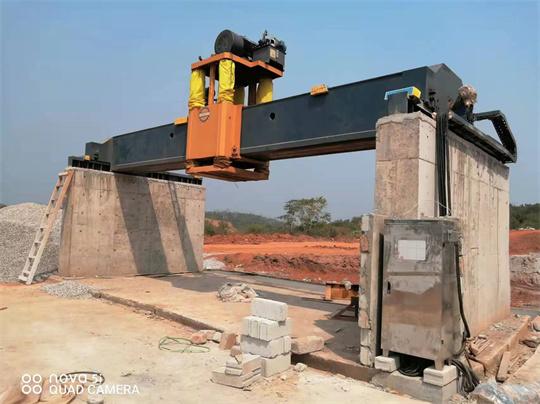

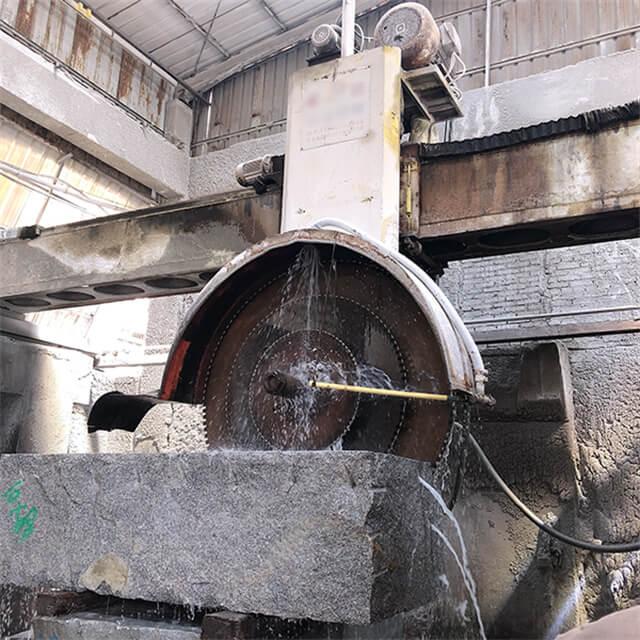

Rock Stone Block Cutter Machine is a high-efficiency and reliable mechanical equipment for cutting stone blocks. It can simplify the tedious manual cutting process in a short time. This machine can not only provide high-efficiency and high-efficiency automatic processing methods for stone processing plants, but also save a lot of labor and equipment costs.
|
Name |
DF-2500 |
DF-2800 |
DF-3000 |
Unit |
|
main motor power |
45 |
55 |
75 |
KW |
|
Diameter of blade |
Ø1600-2500 |
Ø1600-2800 |
Ø1600-3200 |
mm |
|
Lifting Stroke |
1250 |
1200 |
1100 |
mm |
|
slicing range |
2200 |
2200 |
220 |
mm |
|
Blade Number |
1-12 |
13-18 |
18 |
Pieces |
|
cutting stroke |
5000 |
5000 |
5000 |
mm |
|
weight |
12500 |
14000 |
15500 |
kg |
|
overall dimensions(L*W*H) |
8000*4500*6500 |
8000*4500*6500 |
8000*4500*6500 |
mm |
