Price:
Model Number: DF-400A/400B/400C
Power: 16.2/24.5KW
Application: Machinery & Hardware, Construction, Stone
Weight: 3500/3500/3700 KG
Brand Name: DAFON
Certification: CE, ISO
Packaging logistics: In wooded cases with fumigation finish or wrapped with plastic film.

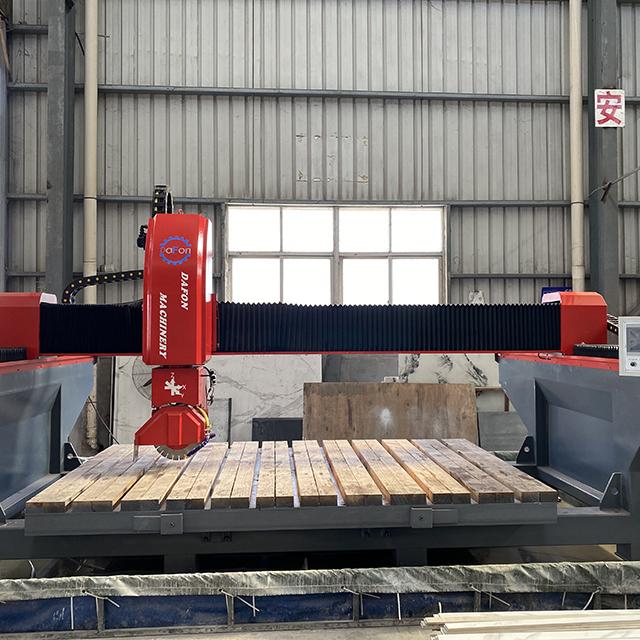

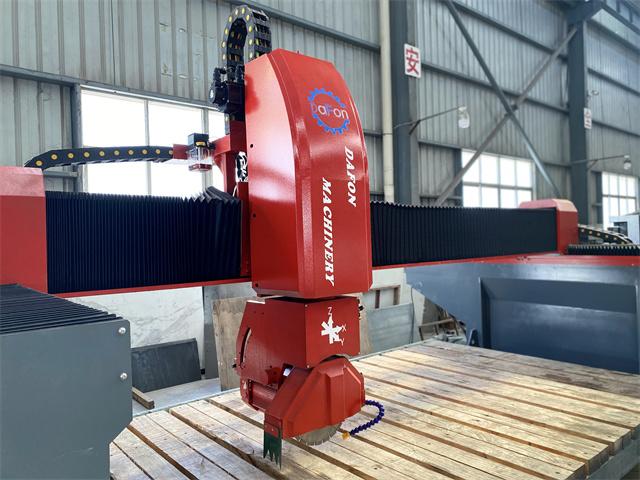

A bridge cutter is a type of saw used for cutting stone, concrete, and other hard materials. It is a large, heavy-duty saw that is mounted on a bridge-like structure and is used to cut large pieces of material into smaller pieces. Bridge cutters are typically used in the construction and masonry industries.
bridge saw cutting machine uses PLC system and human-machine Interface, combined with Ultra-high precision rotary encoder to locate and infrared device,uses inverter to control left-right feeding, adjusts the speed according to the stone material.It uses hydraulic lifting system,main spare parts adopt imported good-quality materials.Thus the whole machine is featured as high cutting effciency,high cutting precision, high stability,easy-operating to suit granite and marble with high value and big size.
Appellation |
DF400A |
DF400B |
DF400C |
Unit |
Blade diameter |
Ø250~400 |
Ø250~400 |
Ø250~400 |
mm |
Max.cutting size |
3200*2000*50 |
3200*2000*50 |
3200*2000*50 |
mm |
blade rotate degress |
0-90° |
0-90° |
0-360° |
° |
blade tilt degress |
|
0-45° |
0-45° |
° |
trolley tilt degress |
0-85° |
0-85° |
0-85° |
° |
Water consumption |
3.5 |
3.5 |
3.5 |
m³/h |
Main motor |
11 |
11 |
15 |
kw |
Total motor |
16.2 |
16.2 |
24.5 |
kw |
Overall dimesion (L*W*H) |
5000*3000*2700 |
5000*3000*2700 |
5000*3000*2700 |
mm |
Gross weight |
3500 |
3500 |
3700 |
kg |
Worktable dimension |
3200*2000 |
3200*2000*50 |
3200*2000*50 |
mm |

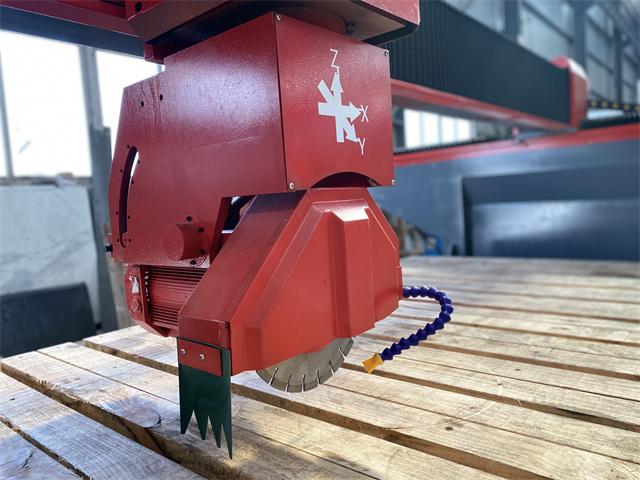

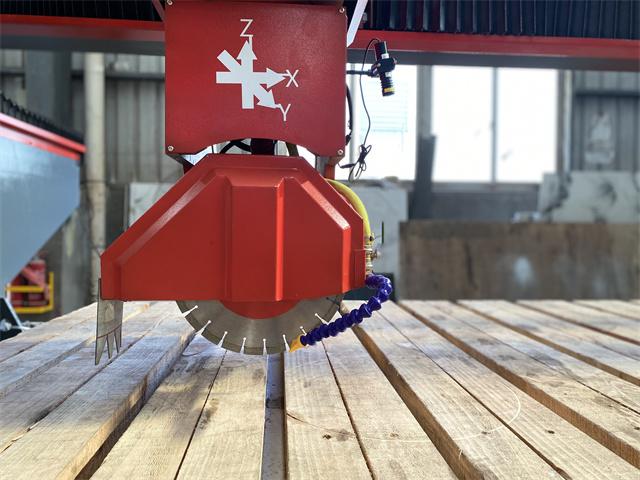

The cutting speed is controlled by inverter to achieve stepless adjustment, the head movements, table title up, rotation and positionuse hydraulic transmission to move. it can be cut by manually and fully automatic easily.
It adopts PLC programmable control system and touch screen operator and combined with high precision encode positioning(Omron brand encoder)
The worktableis controlledby hydraulic rotation and also can be locked in any position Manually

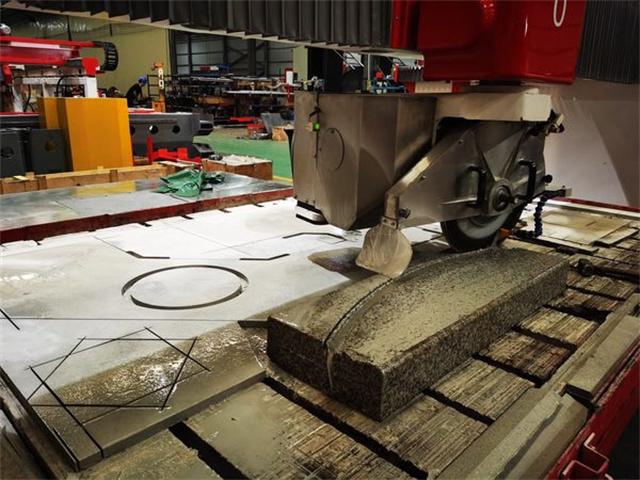

It is applicable to cutting the valuable and large sized stone slab for many specifications
