Best kerb Stone Cutting Machine

Committed to excellence in every aspect of production, DAFON takes great pride in being a premier manufacturer of the Best kerb Stone Cutting Machine that achieves unparalleled results in design, manufacture, and trading.
Price: $22000-$27000
Brand Name: DAFON
Model Number: DFLSX1200-13S
Power: 22KW/55KW
Application: Stone Industry
Weight: 20T
Place of Origin: CHINA.
Trading Method: FOB/CIF/EXW Xiamen Port
Certification: CE, ISO
Minimum Order Quantity: 1 SET
Delivery Time:90 Days
Packaging logistics: In wooded cases with fumigation finish or wrapped with plastic film.

Get Quote

  • Comprehensive understanding of curb stones


With the continuous advancement of urban construction, curb stones, as a vital urban road construction material, are widely used in various places such as highways, streets and sidewalks. It can not only beautify the environment and guide traffic, but also enhance the stability and durability of the road surface.

Materials of Kerbstone
There are many types of curbstone materials, and common ones include concrete, granite, artificial stone, etc. Concrete curbs are the most common choice, with the advantages of low cost, easy construction, and good durability. Granite curb stone has the characteristics of natural beauty and strong wear resistance, and is suitable for high-end communities, parks and other places. Artificial stone curb stones are made through molds and artificial production. They have various appearances and can be customized according to design requirements. They are often used in landscape projects.

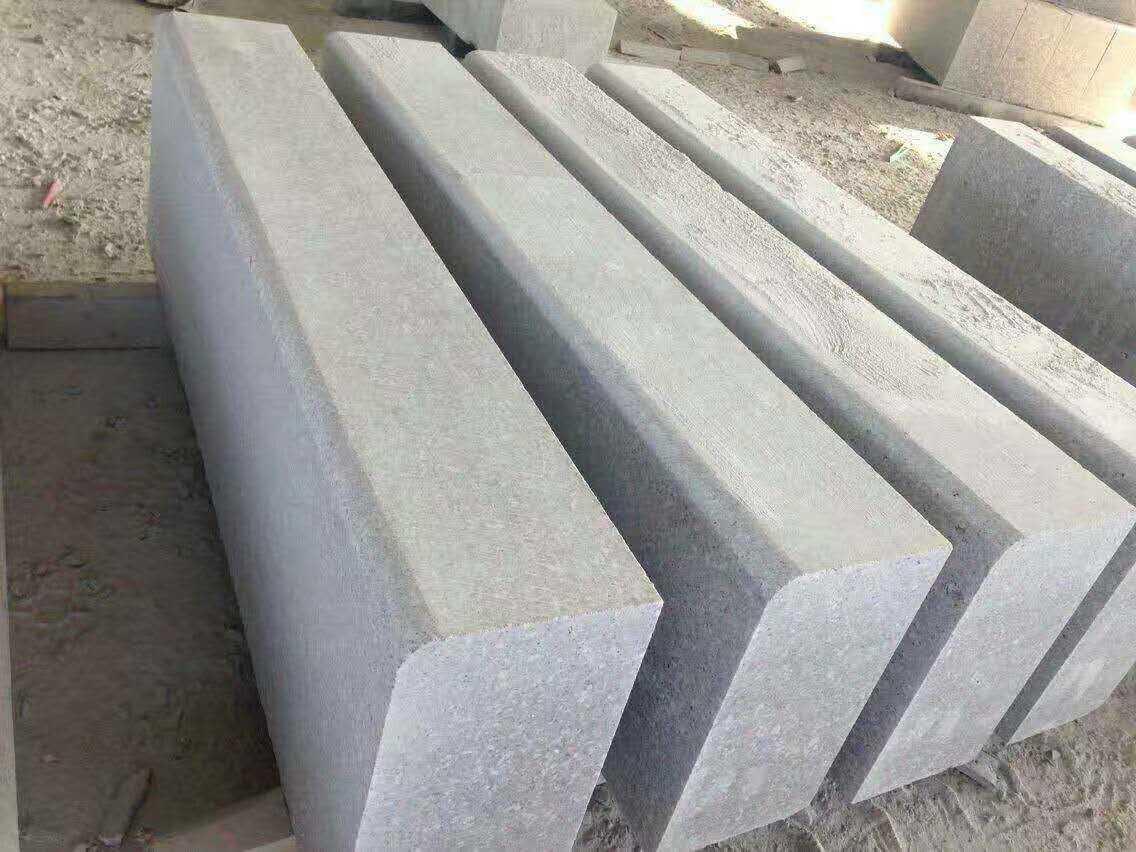

kerbstone shape

The shape of the curbstone is also important. Common curb stone shapes include L-shaped, U-shaped, T-shaped, etc. L-shaped curb stones are suitable for road edges and can effectively guide the walking direction of vehicles and pedestrians. U-shaped curbs are suitable for sidewalks or public squares, and their curved design helps improve pedestrian safety and comfort. T-shaped curb stones are often used in traffic islands, pedestrian bridges and other places to prevent vehicles from crossing illegally.

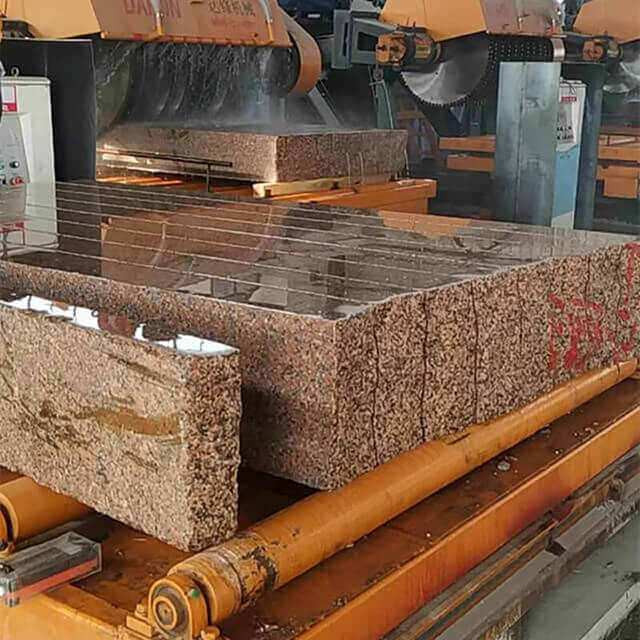

kerb stone cutter


  • The Introduction of Automatic Stone Cutting Machine

The demand for curbstone has surged, but the equipment cannot keep up. The output of old mechanical equipment cannot meet the demand for kerbstone. Against this background, dafon machinery has successfully established a specialized batch of kerbstone equipment to produce high-volume, automated curbstone. .

A complete kerbstone cutting machine line is mainly composed of stone splitting machine, edge cutting machine and stone chamfering machine, and is a batch and automated production model. It adopts PLC programmable control and human-machine operation interface, supplemented by ultra-bright precision rotary encoder for slicing. The left and right cutting tools are controlled by a frequency converter, and the speed can be adjusted according to the stone material. The up and down lift is hydraulic lift, combined with chrome-plated guide posts+ The wear-resistant guide sleeve has a small fitting gap, is wear-resistant and beautiful, and is designed with multi-layer sealing in the guide sleeve, which is waterproof, dust-proof and oil-leakage-proof, extending the service life. The front and rear segments are driven by high-precision screw nuts, and automatic segmentation is key. All parts are made of imported high-quality spare parts, and the blocks can be placed directly on the ground, saving the trolley and its maintenance costs; therefore, it has high cutting efficiency, high slicing accuracy, good flatness of the cut sheets, high stability, and easy operation. And other advantages, it is especially suitable for cutting high-value granite and marble blocks.

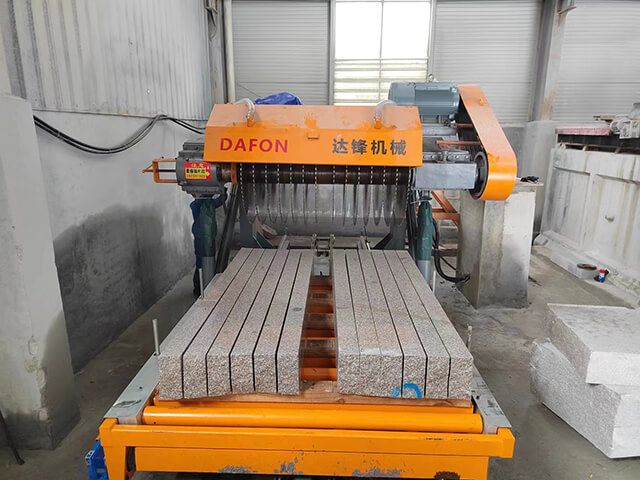

kerb stone cutter

  • The Features of kerb Stone Cutting Machine
1. no foundation needed, easy installation, easy for shipment.
2. it adopts enlarged trolley, 2 pcs of blocks can be placed one upon another to cut at the same time, the output can be doubled in this way.
3. it uses the main spindle and a vice spindle to seal all saw blades together which can ensure the machine stable while cutting hard granite.
4. it uses a simple program of movement on the controlling box, easy for setting, handling, and maintaining.
5. it adopts two hydraulic pillars(a set of hydraulic systems) on both sides of the machine to ensure the strength of cutting spindle lifting up and down.
6. Unlike traditional stone cutting, it dramatically increases productivity and reduces labor cost and power consumption and it consumes less diamond segment per cubic meter of production compared to the traditional cutting machine.
7. Cast iron is adopted in the main frame of the machine to make the machine more stable with less chance of vibration under the operating condition.

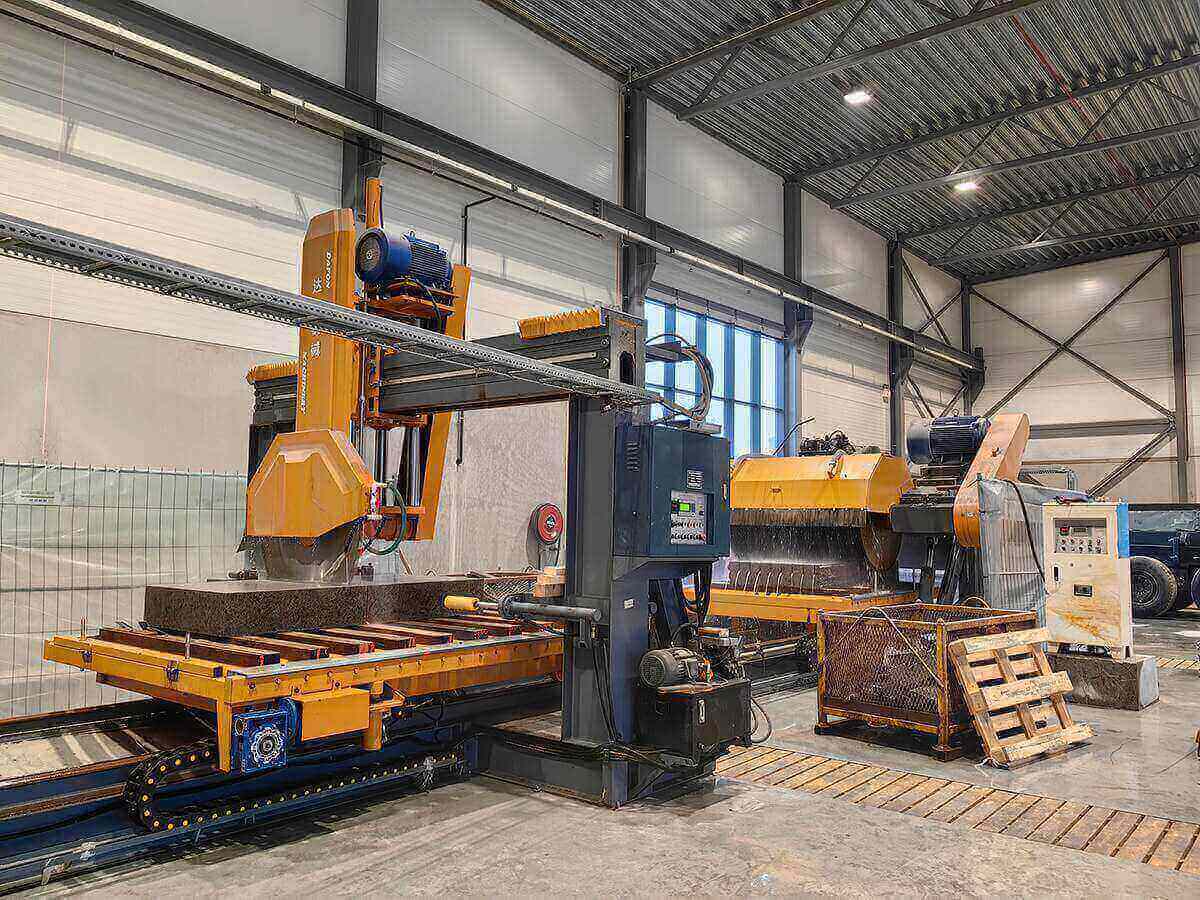

kerb stone making machine

  • Technical Date of kerb stone cutting Machine

Complete Machine Line (1 Edge Cutting Machine + 1 Slicing Machine)

Slicing Machine DF1200-12S



Edge Cutting Machine DF1200-1S

Dimension

6000×3000×2800mm



Dimension

6000×4000×4500mm

Diameter of blade

1200mm



Diameter of blade

1200mm

Number of blades

12pcs



Number of blades

1pcs

Max.cutting size

3000×1800×450mm



Worktable size

2500×1800mm

Worktable size

2500×1800mm



Working length max

2500mm

Weight

10t



Max.vertical stroke

600mm

Max.cutting depth

450mm



Weight

9t

Main motor power

55kw-6



Max.cutting depth

450mm

Max.vertical stroke

600mm



Main motor power

22kw-6

It produces about 30-35m³ of stone every day (24h) and covers a total space of 12m*5m.

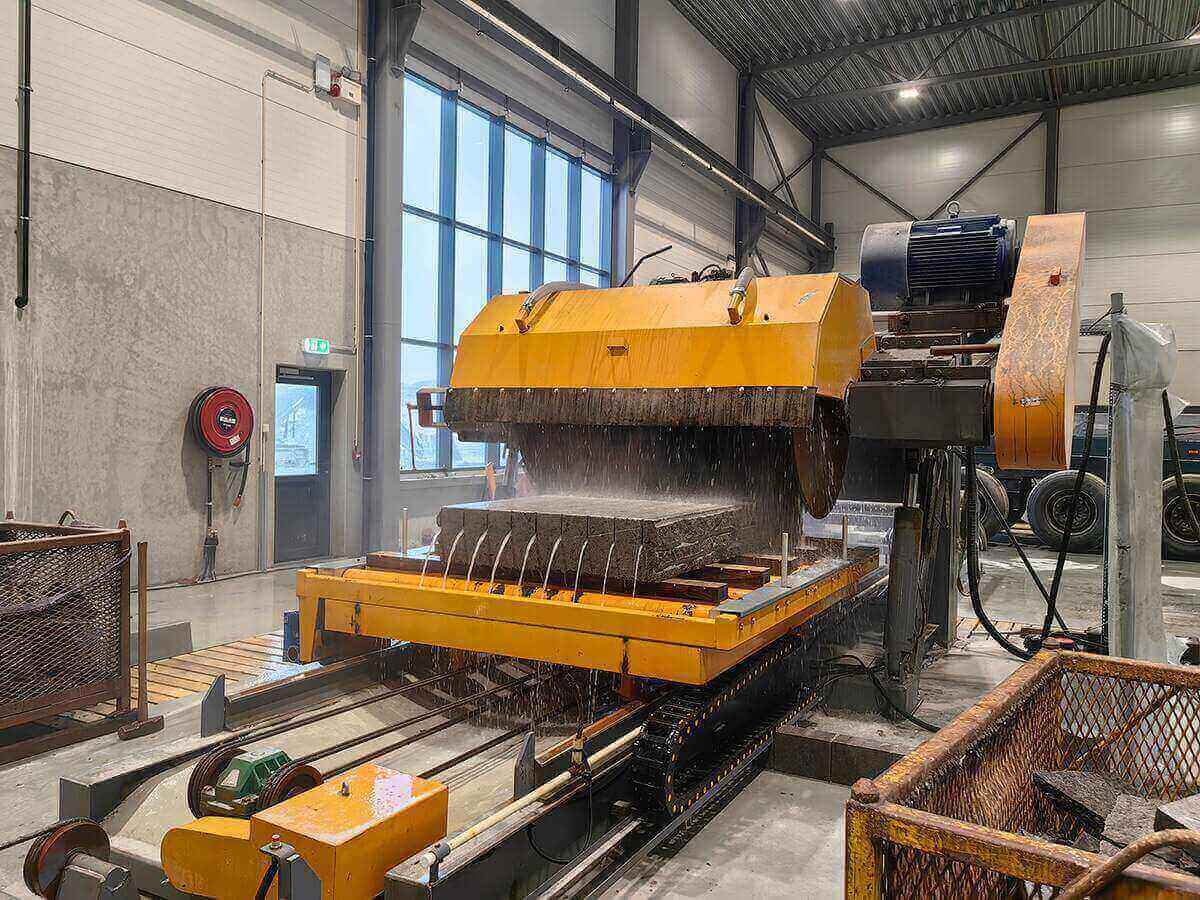

kerb stone making machine
